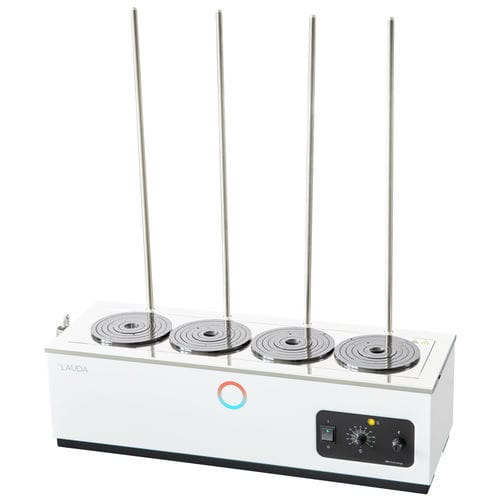

Heating water bath Hydro H 6 V

benchtopstainless steel

Product overview
LAUDA Hydro vaporization bath for controlled evaporation and gentle steaming tasks in laboratory and industrial environments. Stainless steel bath interior and components allow use with chemically aggressive media. Opening diameter can be adjusted in approx. 20 mm steps using the multi-piece ring set; models H 11 V and H 19 V are adapted for safe use in fume cupboards.

Features

• Vaporization water bath for gentle steaming work
• Water deficiency protection
• Multi-piece ring set made of heat-resistant plastic for variable opening diameters
• Temperature adjustment via rotary knob with temperature scale
• Adjustable water level regulator, sieve bottom and ring set supplied as standard
• Support rods (length 600 mm, diameter 12 mm) made of stainless steel included
• 1-point temperature controller
• Bath interior, cover, sieve plate and heating element made of stainless steel

Working range

• Min. working temperature: 25 °C
• Max. working temperature: 100 °C
• Temperature stability: 3 ± K

Technical data (according to DIN 12876)
Working temperature range: 25 ... 100 °C
Ambient temperature range: 10 ... 40 °C
Temperature stability: 3 ± K
Heater power max.: 1 kW
Max. power consumption: 1 kW
Current consumption: 16 A
Size of bath (Ø): 131 mm
Number of bath openings: 4
Dimensions (WxDxH): 710 x 270 x 192 mm
Weight: 13 kg
Power supply: 230 V; 50/60 Hz
Power plug: Power cord with angled plug (CEE7/7)

Technical specifications

• Model: Hydro H 6 V
• Working range: 25–100 °C
• Temperature stability: 3 ± K
• Heater power: 1 kW
• Bath diameter: 131 mm
• Number of openings: 4
• Dimensions: 710 x 270 x 192 mm
• Weight: 13 kg
• Material: stainless steel (bath interior, cover, sieve plate, heating element)
• Standard equipment: multi-piece ring set, adjustable water level regulator, sieve bottom, support rods (600 mm, Ø 12 mm)
