Heating water bath Hydro H 19 V

thermostaticbenchtopstainless steel

Product description

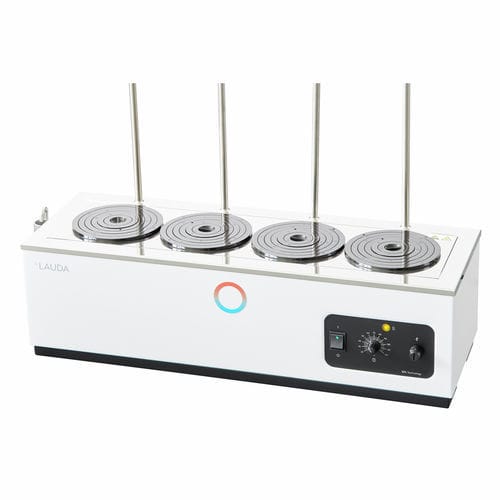

LAUDA Hydro vaporization water bath H 19 V is designed for gentle evaporation work in fume cupboards. The stainless-steel housing and internal components permit operation with chemically aggressive media. The multipart ring set enables variable opening diameters in approx. 20 mm steps; models H 11 V and H 19 V are intended for protected use in fume hoods.

Features

• Vaporization water bath for gentle steaming work
• Water deficiency protection
• All hole covers consist of a multi-part ring set and are removable
• Temperature adjustment via rotary knob with temperature scale
• Adjustable water level regulator, sieve bottom and ring set as standard
• Multi-piece ring set made of heat-resistant plastic
• 1-point temperature controller
• Bath interior, cover, sieve plate and heating element are made of stainless steel

Working range
Min. working temperature: 25 °C
Max. working temperature: 100 °C
Temperature stability: ±3 K

Technical data (according to DIN 12876)
Working temperature range: 25 ... 100 °C
Ambient temperature range: 10 ... 40 °C
Temperature stability: ±3 K
Heater power max.: 1.5 kW
Max. power consumption: 1.5 kW
Current consumption: 16 A
Size of bath (Ø): 111 mm
Number of bath openings: 8
Dimensions (WxDxH): 690 x 300 x 155 mm
Weight: 8 kg
Power supply: 230 V; 50/60 Hz
Power plug: Power cord with angled plug (CEE7/7)

Accessories (examples)

• Algizid Aquastab (accessory for water treatment)
• Additional accessories available via LAUDA accessory finder
