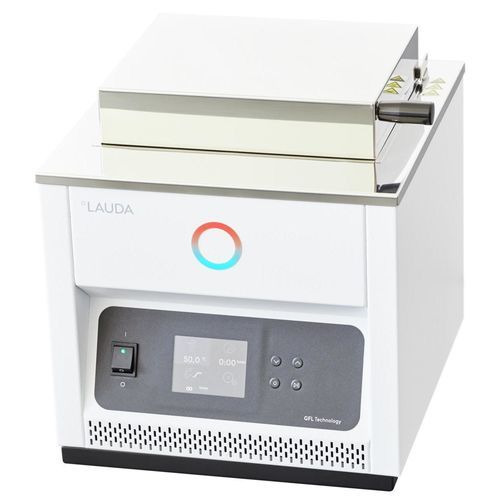

Circulating water bath Hydro H 8 A

heatingthermostaticbenchtop

Product overview
LAUDA Hydro water baths in high‑quality stainless steel are available in bath volumes from 4 to 41 litres and provide suitable bath depth and access for a wide range of laboratory and industrial applications. The Hydro H 8 A offers an operating range up to 100 °C, temperature constancy of ±0.1 K and a TFT colour display with temperature readout in °C and °F for intuitive operation.

Key features

• Simple-to-operate water bath with membrane keypad and clear symbols
• Timer with hour and minute settings; three application-specific timer modes
• Adjustable over- and under-temperature alarm thresholds up to ±10 K
• Optical and acoustic alarms for over/under temperature and low liquid level
• Integrated circulation system for improved spatial temperature uniformity
• Stainless steel bath interior, cover (double-walled, insulated), perforated floor (sieve plate) and heating element
• Bath vessel with drain valve; design prevents condensate dripping back into vessels
• TFT display showing all process data; temperature display switchable between °C and °F
• Digital setpoint adjustment with 0.1 °C increments; 1-point temperature controller with electronic monitoring
• Sensor break/short-circuit detection

Working range
Min. working temperature: 25 °C
Max. working temperature: 100 °C
Temperature stability: ±0.1 K

Technical data (selected)
Working temperature range: 25 ... 100 °C
Ambient temperature range: 10 ... 40 °C
Temperature stability: ±0.1 K
Heater power max.: 1 kW
Min. / max. bath volume: 3.8 / 7.0 L
Dimensions (WxDxH): 340 x 395 x 345 mm
Weight: 12 kg
Power supply: 230 V; 50/60 Hz
Power plug: Power cord with angled plug (CEE7/7)

Included / standard equipment

• Stainless steel bath interior
• Double-walled, insulated lid
• Perforated floor (sieve plate)
• Drain valve

Specifications

• Model: Hydro H 8 A
• Bath volumes available (product family): 4 to 41 litres
• Temperature range up to 100 °C
• Temperature constancy: ±0.1 K
• Display: TFT colour (°C / °F)
• Controller: 1-point temperature controller with electronic monitoring
• Alarms: optical and acoustic; adjustable over-/under-temperature alarm up to ±10 K; low-level alarm
• Circulation: integrated circulation system for improved spatial stability
• Construction: stainless steel bath interior, cover, sieve plate and heating element
• Dimensions (WxDxH): 340 x 395 x 345 mm
• Weight: 12 kg
• Supply: 230 V; 50/60 Hz; Power cord with angled plug (CEE7/7)
