Scientific research water bath Hydro

heatingcirculatingthermostatic

Overview

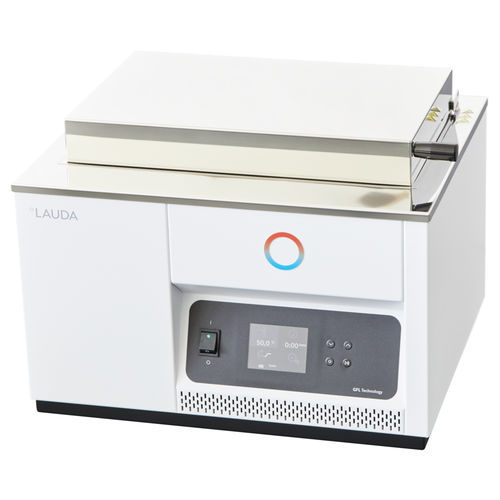

LAUDA Hydro includes six laboratory water baths and two models with a circulation function. Units have stainless steel interiors, bath volumes from 4 to 41 L and an operating range up to 100 °C with temperature stability of ±0.1 K. A TFT color display provides intuitive operation and shows temperature in °C and °F.

Product line
Device line: Hydro — water baths designed for laboratory temperature control (typical operating range 25 to 100 °C).

Performance

• Heating output: 0.5 kW to 1.5 kW depending on model
• Temperature stability: ±0.1 K
• Bath volumes: approx. 1.9 L up to 37.9 L depending on model (general range 4–41 L)

Product variants
Product | Min. working temp | Max. working temp | Heater power max. | Min. / max. bath volume
Hydro H 4 | 25 °C | 100 °C | 0.5 kW | 1.9 / 3.5 L
Hydro H 8 | 25 °C | 100 °C | 1 kW | 3.8 / 7.0 L
Hydro H 8 A | 25 °C | 100 °C | 1 kW | 3.8 / 7.0 L
Hydro H 16 | 25 °C | 100 °C | 1.5 kW | 7.5 / 13.9 L
Hydro H 16 A | 25 °C | 100 °C | 1.5 kW | 7.5 / 13.9 L
Hydro H 22 | 25 °C | 100 °C | 1.5 kW | 7.5 / 20.3 L
Hydro H 24 | 25 °C | 100 °C | 1.5 kW | 11.3 / 20.9 L
Hydro H 41 | 25 °C | 100 °C | 1.5 kW | 9.3 / 37.9 L

Applications / Typical industries

• Research & development laboratories: sample preparation and quality assurance
• Medical technology: laboratory temperature control for samples and medical devices
• Chemical industry: process technology and reactor temperature control

Technical specifications

• Device line: Hydro
• Number of variants: six water baths and two models with circulation function
• Interior material: stainless steel
• Working temperature: up to 100 °C (typical 25–100 °C)
• Temperature stability: ±0.1 K
• Heating power: 0.5–1.5 kW depending on model
• Display and control: TFT color display (°C / °F)
• Suitable for use in the boiling temperature range where homogeneous temperature distribution is required
