Histological section water bath Hydro H 2 P

tissueheatingthermostatic

Product overview

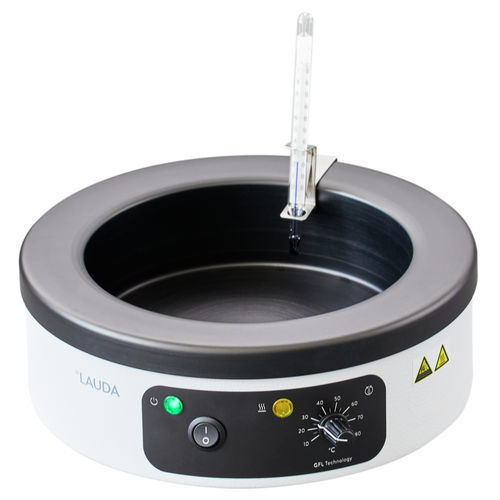

LAUDA Hydro H 2 P tissue float bath for paraffin sections, designed for stretching and drying cut tissue samples. Operates from 25 to 80 °C with a temperature constancy of ±0.5 K. Bath interior made of black‑anodised aluminium. Low bath height for ergonomic, safe handling.

Features

• Tissue float bath for paraffin section stretching and drying
• 1‑point temperature controller with rotary knob and temperature scale
• Control thermometer with holder supplied as standard; temperature readable at bath edge
• Water deficiency (low‑water) protection
• Aluminium bath interior, black anodised

Working range

• Minimum working temperature: 25 °C
• Maximum working temperature: 80 °C
• Temperature stability/constancy: ±0.5 K

Technical data (according to DIN 12876)
Working temperature range: 25 ... 80 °C
Ambient temperature range: 10 ... 40 °C
Temperature constancy: ±0.5 K
Heater power (max.): 0.3 kW
Max. power consumption: 0.3 kW
Current consumption: 16 A
Dimensions (WxDxH): 280 x 280 x 100 mm
Weight: 2 kg
Power supply: 230 V; 50/60 Hz
Power plug: Power cord with angled plug (CEE7/7)

Technical specifications

• Working temperature range: 25 ... 80 °C
• Ambient temperature range: 10 ... 40 °C
• Temperature constancy: ±0.5 K
• Heater power (max.): 0.3 kW
• Max. power consumption: 0.3 kW / 16 A
• Dimensions (WxDxH): 280 x 280 x 100 mm
• Weight: 2 kg
• Bath interior: Aluminium, black anodised
• Temperature control: 1‑point controller; rotary knob with temperature scale; control thermometer with holder
• Safety: Water deficiency protection
