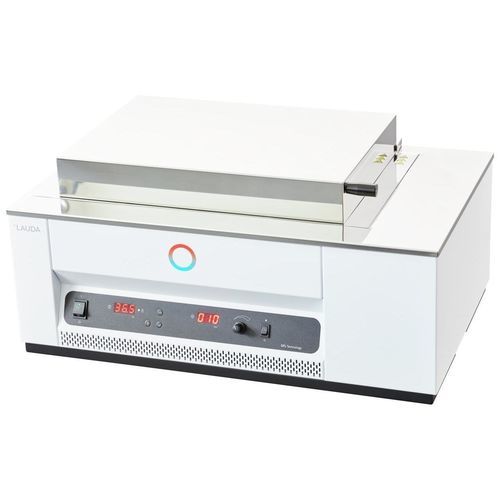

Cooling water bath Hydro H 20 S

shakingthermostaticheating

Overview
The LAUDA Hydro H 20 S shaking water bath delivers load-independent, continuously adjustable shaking with a smooth start-up. A cooling coil is fitted as standard; connecting to tap water or a recirculating chiller extends the lower temperature range. Stainless-steel wetted parts facilitate cleaning and chemical resistance.

Key features

• Infinitely adjustable shaking speed with overload protection and gentle start-up
• 1-point digital temperature controller with LED display and 0.1 °C resolution
• Standard cooling coil; possible cooling down to approx. 10 °C with external water/chiller connection
• Stainless-steel bath interior, cover, shaking basket and heating element
• Double-walled, heat-insulating stainless-steel lid; lid and drain valve included
• Condensate channel prevents droplets from returning to samples
• Electronic overtemperature and water-deficiency protection
• Linear oscillating shaking motion; shaking amplitude 22 mm
• Bath vessel with drain valve for easy emptying

Working range

• Operating temperature: 25–100 °C
• Minimum working temperature (with cooling supply): achievable down to approx. 10 °C
• Temperature stability: ±0.1 K

Technical data (according to DIN 12876)

• Ambient temperature range: 10–40 °C
• Heater power / max. power consumption: 1.5 kW
• Current consumption: 10 A; Power supply: 230 V, 50/60 Hz; Plug: angled CEE7/7
• Bath volume (min / max): 9.0 / 24.4 L
• Dimensions (W×D×H): 715 × 520 × 330 mm; Weight: 28 kg
• Shaking frequency: 10–250 1/min; Shaking amplitude: 22 mm

Technical specifications

• Model: Hydro H 20 S
• Manufacturer: LAUDA
• Working temperature range: 25–100 °C; Temperature stability: ±0.1 K
• Bath volume (min / max): 9.0 L / 24.4 L
• Shaking: amplitude 22 mm; frequency 10–250 1/min; continuously adjustable speed
• Construction materials: stainless-steel interior, cover, shaking basket and heating element
