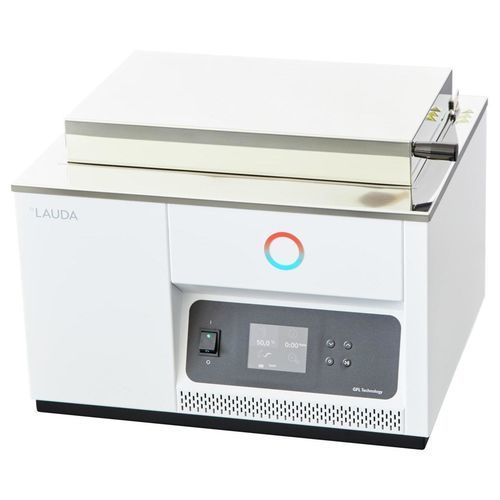

Circulating water bath Hydro H 16 A

heatingthermostaticbenchtop

Product overview
LAUDA Hydro water baths made of high-quality stainless steel offer the right bath depth and opening for every application with bath volumes from 4 to 41 litres. All water baths offer a temperature range of up to 100 °C with a temperature constancy of ±0.1 K. A TFT colour display ensures intuitive operation with a temperature display in °C and °F.

Key features

• Simple to operate water bath
• Setting the timer's time values in hours (h) and minutes (min)
• Adjustable trigger points for over- and under-temperature alarms up to max. +/- 10 K
• Optical and acoustic alarm for low-level and over/under temperature
• Three application-specific timer functions
• Bath vessel with drain valve
• Lid and perforated floor as standard
• TFT display with clear display of all process data
• Membrane keypad with concise symbols
• Temperature display can be switched from °C to °F
• Sensing and alarm for sensor break/short-circuit
• Integrated circulation system to improve spatial temperature stability
• Heat insulating lid made of stainless steel, double-walled with inner curvature
• Setting and displaying temperature values in increments of 0.1 °C
• Digital setpoint adjustment
• 1-point temperature controller with electronic monitoring
• Bath interior, cover, sieve plate and heating element are made of stainless steel
• Design prevents condensate from dripping back into the vessels

Working range
Min. working temperature: 25 °C
Max. working temperature: 100 °C
Temperature stability: 0.1 ± K

Technical data (selected)
Working temperature range: 25 ... 100 °C
Ambient temperature range: 10 ... 40 °C
Temperature stability: 0.1 ± K
Heater power max.: 1.5 kW
Min. / max. bath volume: 7.5 / 13.9 L
Dimensions (WxDxH): 500 x 440 x 345 mm
Weight: 16 kg
Power supply: 230 V; 50/60 Hz
Power plug: Power cord with angled plug (CEE7/7)

Accessories (examples)

• Milk bottle rack (accessory available)
• Insert racks / test tube racks (accessories available)

Technical specifications

• Model: Hydro H 16 A
• Bath material: Stainless steel (interior, cover, sieve plate, heating element)
• Display: TFT colour display, temperature display in °C/°F
• Controller: 1-point temperature controller, electronic monitoring
• Timer: Hours and minutes, three timer functions
• Alarms: Optical and acoustic for low-level and over/under temperature; adjustable alarm trigger points ±10 K
• Circulation: Integrated circulation system to improve spatial temperature stability
• Drain: Bath vessel with drain valve
• Temperature resolution: 0.1 °C
• Temperature constancy: ±0.1 K
