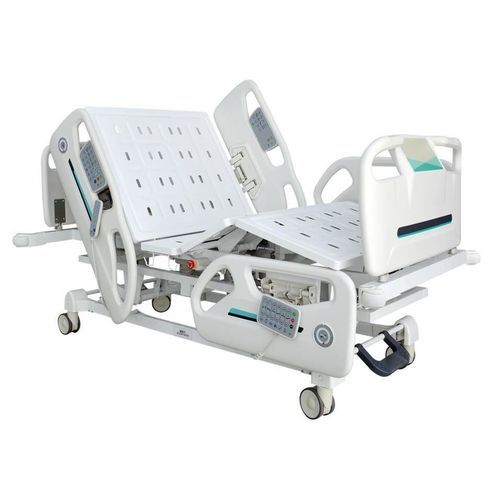

Nursing home bed FY-H001-704

medicalhospitalelectric

Overview
FY-H001-704 is an electric hospital bed with seven-function control and five independent motors, designed for clinical and long-term care environments. Adjustable height and multiple positioning functions facilitate patient care and caregiver ergonomics.

Key features

• 7-function controller for head, foot and height adjustments
• Five independent motors for smooth and precise positioning
• ABS headboard and footboard
• European elevatable ABS guardrail with damping; guardrail includes integrated nurse desk
• Central control wheel for bed-wide operation
• Optional rechargeable battery and anti-collision wheels
• Whole bed load capacity: 200 kg

Technical specifications

• Total length: 2080 ± 20 mm
• Total width: 1000 ± 20 mm
• Bed length (panel): 1940 ± 20 mm
• Bed width (panel): 900 ± 20 mm
• Height (adjustable): 560–820 mm ± 20
• Max load capacity: 200 kg (whole bed)
• Functions: 7-function control
• Motors: 5 motors

Configuration & accessories

• Seven-function controller
• ABS bedside and tail boards
• European elevatable ABS guardrail with damping and nurse desk
• Central control wheel
• 5 motors
• Optional rechargeable battery
• Optional anti-collision wheels

Applications

• Designed for hospitals, clinics, rehabilitation and long-term care facilities

Ordering & options

• Optional accessories and configurations available on request (battery, anti-collision wheels, additional safety features)
• Contact supplier for customization, compliance and delivery details
