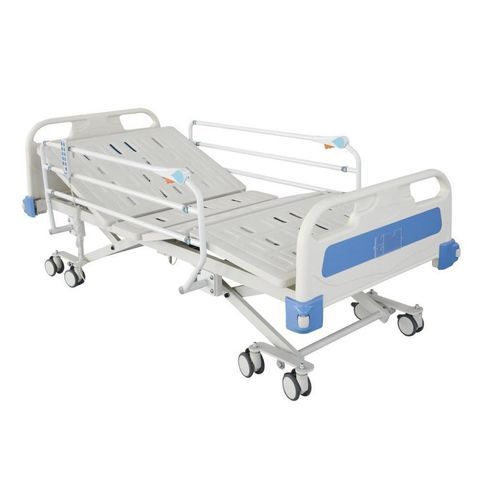

Nursing home bed FY-H001-509

medicalhospitalelectric

Product overview
FY-H001-509 is an electric 5-function hospital bed designed for clinical and long-term care environments. It integrates four electric motors and a five-function controller to provide precise patient positioning while meeting institutional use requirements.

Key features

• Five-function controller for independent adjustments
• Optional rechargeable battery for backup power
• European elevatable ABS guardrail with damping
• Central control wheel for bed positioning
• 4 motors for head, leg and height adjustments
• ABS bedside and tail boards

Technical specifications

• Total length: 2100±20mm
• Total width: 1000±20mm
• Bed length: 1940±20mm
• Bed width: 900±20mm
• Height adjustment range: 480-720mm±20
• Loading weight: 250kg
• Control: Five-function controller
• Power option: Optional rechargeable battery
• Guardrail: European elevatable ABS guardrail with damping
• Control interface: Central control wheel
• Actuators: 4 motors
• Material (ends/boards): ABS bedside & tail boards

Usage and maintenance
This bed is intended for hospitals, clinics and long-term care facilities. Follow the manufacturer's installation and maintenance manual for safe operation, cleaning and servicing. Check local regulations for medical device compliance and request documentation from the supplier as needed.

Ordering information

• Model: FY-H001-509
• Available option: rechargeable battery
