Hospital bed FY-H001-506

electricheight-adjustableon casters

Product name

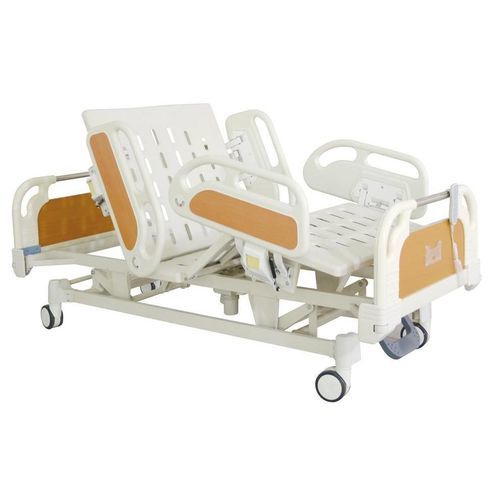

FY-H001-506 Electric 5-Function Hospital Bed

Overview
The FY-H001-506 is an electric hospital bed designed for clinical use, offering five functional adjustments for patient positioning. It is driven by four motors and features adjustable height and modular ABS bedside panels to facilitate caregiving, transfers and clinical procedures.

Configuration

• Five-function controller
• ABS bedside & tail boards
• European elevatable ABS guardrail with damping
• Central control wheel
• 4 pcs motors
• Optional rechargeable battery

Technical specifications

• Total length: 2130±20 mm
• Total width: 1040±20 mm
• Bed length: 1930±20 mm
• Bed width: 900±20 mm
• Height: 480–760 mm ±20
• Controller: Five-function controller
• Bedsides/tail boards: ABS bedside & tail boards
• Guardrail: European elevatable ABS guardrail with damping
• Controls: Central control wheel
• Motors: 4 pcs
• Battery: Optional rechargeable battery
