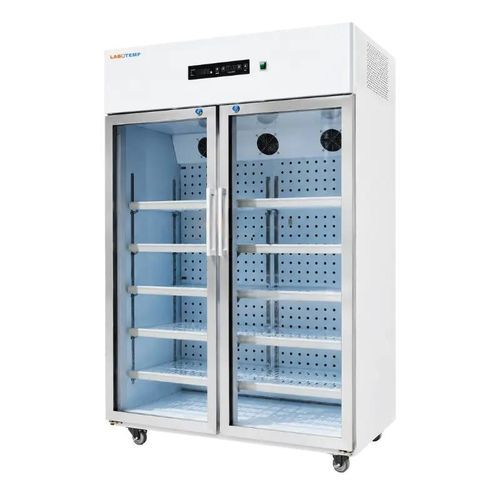

Blood bank refrigerator PHR-19

hospitalfor pharmacieslaboratory

Overview
The PHR-19 pharmaceutical and vaccine refrigerator offers 1200 L storage, precise temperature control from 2°C to 10°C and a forced-air cooling system for uniform temperature distribution. Designed for hospitals, pharmacies, vaccination centres, blood banks and laboratories, it provides reliable conditions for vaccines, medicines, reagents and biological samples. A microprocessor controller with 0.1°C resolution continuously monitors and maintains internal conditions to support cold-chain integrity.

Design and Safety
Engineered for continuous operation, the unit features double glass doors with LED interior lighting for clear visibility while minimising unnecessary door openings. Safety systems include audible and visual alarms for high/low temperature, power failure, sensor fault, door ajar and system errors. The R134a refrigeration circuit, automatic defrost, PURF insulation and corrosion-resistant steel cabinet ensure stable performance and efficient operation.

Specifications (table)

• Capacity: 1200 L
• Temperature range: 2–10 °C
• Voltage: 220 V / 50 Hz
• Input power: 350 W
• Cooling method: Forced air cooling
• Defrost: Automatic
• Refrigerant: R134a (CFC free)
• Power consumption: 2.5 kWh/24h
• Ambient temperature: 10–32 °C
• Controller: Microprocessor (0.1 °C resolution)
• Display: LED digital
• Cabinet: Color sprayed steel
• Door: Double glass door
• Insulation: PURF
• Alarms: High/low temp, power failure, sensor failure, door ajar, system failure (sound & light)
• Castors: Yes
• Interior lamp: LED
• Noise level: 42 dB

Features

• Double glass door design for improved visibility and reduced opening frequency
• Bright LED digital display for clear temperature monitoring
• Keyboard lock and password protection for secure operation
• Audible and visual alarms for temperature deviation, power interruption, sensor faults and door ajar
• Memory retention function during power interruptions
• Adjustable steel-wire shelves for flexible storage
• Lockable double glass doors for increased security
• Corrosion-resistant steel cabinet construction
• Interior LED lighting for convenient inventory checks

Applications

• Suitable for vaccine and pharmaceutical storage in hospitals, pharmacies and vaccination centres requiring stable 2–10 °C conditions
• Supports storage of medicines, reagents, biological samples and diagnostic materials in blood banks, clinical and research laboratories where temperature monitoring and alarm protection are essential

Technical Specifications

• Model: PHR-19
• Capacity: 1200 L
• Temperature range: 2–10 °C
• Cooling method: Forced air cooling system
• Refrigerant: R134a (CFC free)
• Power: 220 V / 50 Hz; Input power 350 W
• Power consumption: 2.5 kWh/24h
• Temperature controller: Microprocessor (0.1 °C resolution)
• Display: LED digital display
• Defrost: Automatic
• Insulation: PURF
• Cabinet material: Color sprayed steel
• Door type: Double glass door (lockable)
• Alarms: High/low temp, power failure, sensor failure, door ajar, system failure (sound & light)
• Interior lamp: LED
• Castors: Yes
• Noise level: 42 dB
• Climate class: N
• Electric shock resistance: Class I Type B
• Number of chambers: 6
• Exterior dimensions (W×D×H): 1200 × 740 × 1870 mm
• Package dimensions (W×D×H): 1320 × 830 × 2060 mm
• Net weight: 110 kg; Gross weight: 130 kg
