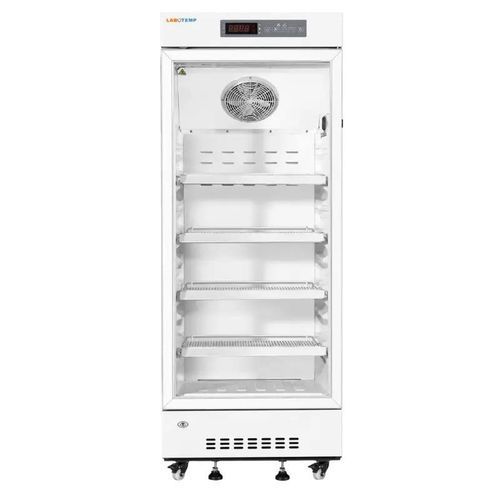

Pharmacy refrigerator PHR-15

for healthcare facilitiesfor vaccinesfor hospitals

Product overview
Labotemp Pharmaceutical and Vaccine Refrigerator PHR-15 is a dedicated cold storage unit designed for safe vaccine storage, pharmaceutical preservation, insulin and laboratory sample protection in hospitals, pharmacies, clinics, research institutes and diagnostic laboratories. It maintains a stable 2°C to 8°C range with 0.1°C accuracy, provides 236 L usable capacity and uses forced-air cooling for uniform temperature distribution within the cabinet.

Controller and monitoring
The unit features a microprocessor controller, digital display and NTC sensor for accurate real-time temperature monitoring. Safety functions include high/low temperature alarm, power-failure alarm with up to 8 h backup, sensor and controller error alarms, and door-ajar alarm. USB data download and a remote alarm port are provided for traceability and integration with building alarm systems.

Key features

• Operating range 2°C to 8°C (0.1°C accuracy)
• Forced-air cooling for uniform internal temperature
• Microprocessor control with digital display and NTC sensor
• High/low temp, sensor error, controller error and door-ajar alarms
• Power-failure alarm with up to 8 h backup
• Auto defrost and heating glass door to reduce condensation
• Adjustable shelves, LED interior illumination and castors with leveling feet
• Eco-friendly R600a refrigerant

Applications

• Vaccine storage and cold chain support in hospitals, clinics and pharmacies
• Preservation of medicines, insulin and reagents
• Storage of biological samples and temperature-sensitive materials in research and diagnostic laboratories

Technical specifications

• Model: PHR-15
• Capacity: 236 L
• Temperature range: 2 ~ 8 °C (0.1°C accuracy)
• Voltage & Frequency: 220V±10%, 50/60Hz
• Ambient operating temperature: 10 ~ 32°C
• Rated power: 221 W
• Noise level: 50 dB
• Controller: Microprocessor with digital display
• Sensor: NTC
• Electric current: 1.4 A
• Power consumption: 3.47 kWh/24h
• Alarms: High/low temp, power failure (8h), sensor error, controller error, door ajar
• Refrigeration type: Forced-air cooling
• Defrost: Automatic
• Compressor: Chinese brand, 1 pc
• Refrigerant: R600a (116 g)
• Door: 1 heating glass door
• Shelves: 4 adjustable shelves
• Interior: ABS cabinet
• Exterior: Coated steel
• Insulation: PURF 45 mm
• Door lock: Yes
• LED lamp: Yes
• Test hole: 1
• Castors / Leveling feet: 4 / 2
• Gross weight: 76 kg
• Package size: 740 × 690 × 1800 mm

Concise features

• 8 h alarm backup
• Automatic defrost
• Heating glass door to reduce condensation
• Integrated audible and visual alarms
• Safety door lock
• Adjustable shelves for flexible organization
• ABS interior and coated steel exterior for easy cleaning
• Eco-friendly refrigerant and LED illumination
