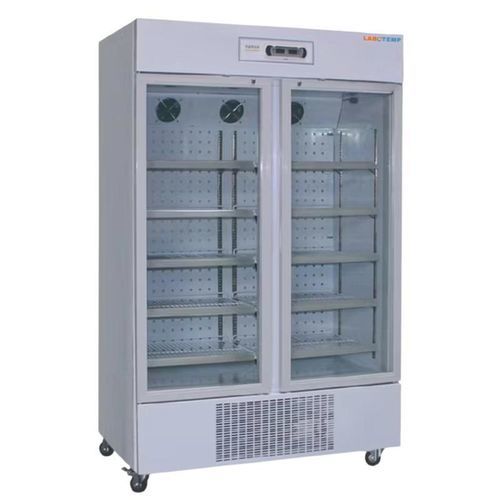

Pharmacy refrigerator PHR-04

for vaccinesfor hospitalslaboratory

Product overview
Labotemp Pharmaceutical & Vaccine Refrigerator PHR-04 provides controlled cold storage for vaccines, medicines and biological samples. With a 660 L capacity and an adjustable +2 to +8 °C range, it is designed for stable temperature management in hospitals, laboratories and pharmacies. The unit uses a Secop compressor and a fluorine-free refrigerant; the inner chamber is 304 stainless steel for hygiene and durability.

Key benefits

• Stable performance Consistent cooling in ambient 16–32 °C conditions with steady 220 V operation.
• Enhanced safety Multi-parameter audible and visual alarms for high/low temperature, sensor fault and door ajar.
• Uniform cooling Multi-directional airflow prevents hot/cold spots to maintain a homogeneous temperature.
• Energy-efficient Fluorine-free refrigerant and optimized airflow reduce energy consumption and operating costs.

Features

• Secop compressor
• Capacity: 660 L for vaccines, reagents and medicines
• Temperature range: +2 °C to +8 °C (adjustable to 0.1 °C)
• Cooling system: Air cooling with Secop compressor & EBM fan
• Control: Electronic thermostat with digital display
• Alarm: Audible & visual for high/low temperature and door ajar
• Door lock: Yes

Applications

• Suitable for hospitals, clinical and research laboratories, pharmacies and vaccine storage centers requiring regulated +2 to +8 °C cold chain storage.

Technical specifications

• Model: PHR-04
• Capacity: 660 L (23.3 cu.ft.)
• Temperature range: 2–8 °C, adjustable
• Compressor: Secop compressor
• Voltage: 220 V 50 Hz
• Input power: 570 W
• Cooling type: Air cooling
• Thermostat: Electronic
• Display: Digital display
• Exterior size: 1100 x 685 x 2080 mm
• Inner size: 985 x 565 x 1593 mm
• Net weight: 174 kg
• Exterior material: Galvanized sheet with coating
• Inner material: 304 stainless steel
• Lock key: Yes
• Control system: Microprocessor control
• Ambient temperature: 16–32 °C
• Environmental humidity: 20–80%
• Alarm: Audible and visual alarm for high/low temperature and door ajar
