Pharmacy refrigerator PHR-17

for vaccineshospitalblood bank

Product Overview

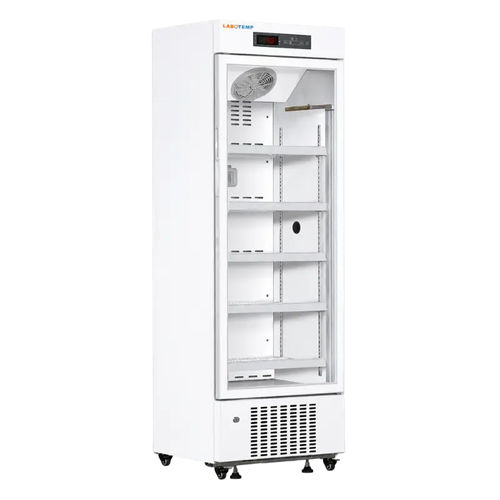

Labotemp Pharmaceutical and Vaccine Refrigerator PHR-17 is a precision-controlled medical refrigerator designed for reliable storage of vaccines, medicines, reagents and other temperature-sensitive laboratory materials. It maintains a stable 2–8 °C range using forced-air circulation inside a 316L stainless-steel interior to ensure uniform temperature and reduced frost formation.

Key Highlights

• Stable 2–8 °C storage for cold-chain pharmaceuticals and vaccines
• Microprocessor temperature control with 0.1 °C accuracy and digital display
• Audible and visual alarms: high/low temperature, power failure (up to 8 h), sensor/controller errors, door ajar
• Backup battery to preserve alarm and display during power interruptions
• Password protection and door lock for controlled access
• Adjustable shelves, LED interior lighting and automatic fan control
• Energy-efficient, environmentally friendly R290 refrigerant (40 g)

Features

• Forced-air circulation for frost-free, uniform cooling
• Microprocessor control with digital interface
• Automatic defrost to reduce maintenance
• Heating glass door for clear visibility and condensation prevention
• Remote alarm port for external monitoring and integration
• Five adjustable shelves for flexible storage layouts
• Durable coated steel cabinet and 50 mm PURF insulation
• Low-noise operation (~50 dB) and LED interior illumination

Applications

• Cold-chain storage of vaccines, medicines, reagents and biological samples requiring 2–8 °C preservation
• Suitable for hospitals, pharmacies, diagnostic and clinical laboratories, blood banks, research institutes and biomedical facilities

Specifications

• Capacity: 316 L
• Temperature range: 2 ~ 8 °C
• Voltage: 220V ±10%, 50/60Hz
• Power consumption: 3.37 kWh/24h
• Ambient temperature: 10 ~ 32 °C
• Power: 286 W
• Electric current: 1.62 A
• Interior dimensions (W × D × H): 540 × 425 × 1380 mm
• Exterior dimensions (W × D × H): 640 × 554 × 1925 mm
• Noise: 50 dB
• Controller: Microprocessor
• Display: Digital
• Sensor: NTC
• Alarms: High/Low temperature, Power failure (8 h), Sensor error, Controller error, Door ajar
• Refrigeration type: Forced-air cooling
• Defrost: Auto
• Refrigerant / Weight: R290 / 40 g
• Door: Heating glass door / 1
• Adjustable shelves: 5
• Interior cabinet material: Coated steel
• Exterior cabinet material: Coated steel
• Insulation material: PURF (50 mm)
• Door lock: Yes
• LED lamp: Yes
• Test hole: 1
• Castors / Leveling feet: 4 / 2
• Remote alarm port: Yes
• Net weight: 93 kg
• Gross weight: 100 kg
• Package size: 720 × 650 × 2000 mm
