Pharmacy refrigerator PHR-08
for vaccinesfor hospitalsfor laboratory

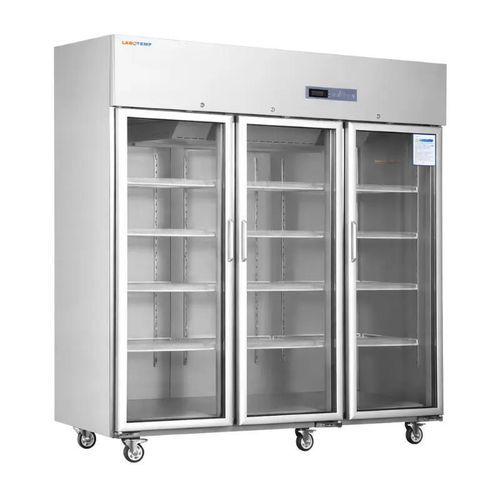

Pharmacy refrigerator - PHR-08 - Labotemp Systems - for vaccines / for hospitals / for laboratory
Pharmacy refrigerator - PHR-08 - Labotemp Systems - for vaccines / for hospitals / for laboratory
Pharmacy refrigerator - PHR-08 - Labotemp Systems - for vaccines / for hospitals / for laboratory - image - 2
Pharmacy refrigerator - PHR-08 - Labotemp Systems - for vaccines / for hospitals / for laboratory - image - 3
Add to favorites
Compare this product
Go to the Labotemp Systems website for more information

Characteristics

Applications
for laboratory, for pharmacies, for vaccines, for hospitals
Configuration
upright
Number of doors
3 doors
Door type
with glass door
Cooling system
with forced air cooling
Defrost mode
automatic defrost
Power source
electric
Other characteristics
stainless steel, large capacity
Capacity

1,500 l
(396.26 gal)

Temperature range

Max.: 8 °C
(46.4 °F)

Min.: 2 °C
(35.6 °F)

Width

180 cm
(70.9 in)

Depth

78 cm
(31 in)

Height

196.5 cm
(77.4 in)

Weight

245 kg
(540.1 lb)

Description

Product overview
Labotemp Pharmaceutical and Vaccine Refrigerator PHR-08 is a high-capacity medical refrigerator engineered for secure storage of vaccines, medicines, insulin and other pharmaceutical products in hospitals, pharmacies, laboratories and immunization centers. It maintains a stable 2–8°C range via microprocessor control with 0.1°C accuracy. The forced-air cooling system ensures uniform temperature distribution and frost-free operation while triple heated glass doors reduce cold loss during use.

Key features
  • Microprocessor temperature control with 0.1°C accuracy
  • Stable 2–8°C temperature range for biomedical and vaccine storage
  • Forced-air cooling for uniform temperature and frost-free operation
  • Triple heated glass doors (3)
  • Stainless steel interior and exterior
  • Auto defrost and service-free drainage system
  • NTC sensors and digital display
  • Adjustable shelves (12) and LED interior lighting (auto/manual)
  • Auto on/off cooling fan to minimize cold air loss during door opening
  • Audible and visual alarms for temperature deviation, power failure, door ajar and sensor error
  • Door lock and controller password protection
  • 8-hour backup battery for alarms and data
  • Low-noise operation (~55 dB)


Applications
  • Storage of vaccines, medicines and insulin
  • Hospitals, pharmacies and clinics
  • Laboratories and immunization centers
  • Any clinical or pharmaceutical setting requiring reliable 2–8°C cold-chain storage


Technical specifications
  • Model: PHR-08
  • Temperature range: 2 ~ 8 °C
  • Ambient temperature: 10 ~ 32 °C
  • Capacity: 1500 L / 52.97 cu.ft
  • Interior dimensions (W×D×H): 1680×640×1420 mm
  • Exterior dimensions (W×D×H): 1800×775×1965 mm
  • Net weight: 245 kg
  • Shipping weight: 280 kg
  • Shipping size (W×D×H): 1940×880×2040 mm
  • Shipping volume: 3.48 CBM
  • Noise level: 55 dB
  • Controller: Microprocessor
  • Display: Digital
  • Sensor: NTC
  • Voltage / Frequency: 220V/110V, 50/60 Hz
  • Power: 1065 W
  • Electric current: 5.64 A
  • Power consumption: 14.42 kWh / 24h
  • Refrigeration type: Forced-air cooling
  • Compressor: SECOP / 1 no.
  • Refrigerant: R134a / 620 g
  • Doors: Heated glass doors / 3
  • Shelves: Adjustable shelves – 12
  • Interior material: Stainless steel
  • Exterior material: Stainless steel
  • Insulation: PURF, 60 mm
  • Door lock: Yes
  • LED lamp: Yes
  • Castors: 5
