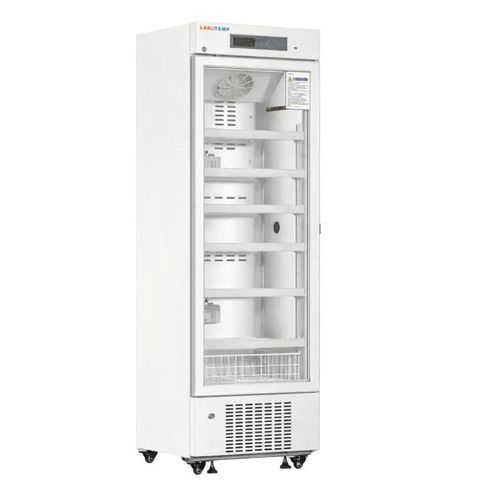

Pharmacy refrigerator PHR-09

for vaccinesfor hospitalsfor laboratory

Overview
The Pharmaceutical and Vaccine Refrigerator PHR-09 is a compact medical refrigerator designed for safe storage of vaccines, medicines, reagents, insulin, and biomedical products in hospitals, pharmacies, laboratories, and immunization centers. Operating accurately within 2–8°C, this vaccine refrigerator features microprocessor control with 0.1°C accuracy to maintain cold-chain compliance. The forced-air cooling system ensures uniform temperature distribution and a frost-free cabinet. It includes a heated self-closing glass door, low-noise operation (50 dB), auto defrost, NTC sensors, adjustable shelves, drawers, and comprehensive audible and visual alarms for temperature deviation, power failure, and door ajar.

Key benefits

• Maintains precise 2–8°C storage with forced-air cooling for temperature stability and cold-chain compliance
• 72-hour backup battery for alarms and data to address power interruption concerns
• Door lock and controller password protection to prevent unauthorized access

Features

• ISO 13485 & CE Compliant
• Microprocessor temperature control with 0.1°C accuracy
• Stable 2–8°C temperature range for biomedical storage
• Forced-air cooling system for uniform temperature and frost-free operation
• Self-closing heated glass door, suitable for high-humidity environments
• Wide voltage tolerance (220V ±10%); models available for 220V/110V, 50/60 Hz
• Auto on/off cooling fan to reduce cold air loss during door opening
• Auto on/off LED interior lighting with manual switch
• Service-free drainage system (no internal water accumulation)
• Adjustable shelves (6) and 1 drawer for organized storage
• Castors with stoppers for easy movement and positioning

Applications

• Safe storage of vaccines, medicines, insulin, reagents, and biomedical products
• Suitable for hospitals, pharmacies, clinics, laboratories, and immunization centers requiring reliable 2–8°C control
• Functions as a vaccine refrigerator, pharmacy fridge, and pharmaceutical refrigerator for routine medical and pharmaceutical storage needs

Caractéristiques / spécifications techniques

• Model No.: PHR-09
• Temperature Range: 2 ~ 8 °C
• Ambient Temperature: 10 ~ 32 °C
• Capacity: 316 L / 11.16 cu.ft
• Interior Dimensions (W×D×H): 540×425×1380 mm
• Exterior Dimensions (W×D×H): 640×554×1925 mm
• Net Weight: 95 kg
• Noise Level: 50 dB
• Controller: Microprocessor
• Display: Digital
• Sensor: NTC
• Voltage / Frequency: 220V/110V, 50/60 Hz
• Power: 294 W
• Electric Current: 1.71 A
• Power Consumption: 3.33 kWh / 24h
• Refrigeration Type: Forced-air cooling
• Defrost: Automatic
• Refrigerant: R290 / 40 g
• Door: Self-closing heating glass door / 1
• Shelves: Adjustable shelves – 6
• Drawer: 1
• Interior Material: Coated steel
• Exterior Material: Coated steel
• Insulation: PURF, 50 mm
• Door Lock: Yes
• LED Lamp: Yes
• Test Hole: 1
• Castors / Leveling Feet: 4 / 2
• Shipping Weight: 105 kg
• Shipping Size (W×D×H): 720×650×2000 mm
• Shipping Volume: 0.94 CBM
