Pharmacy refrigerator PHR-06

for vaccineshospitalfor laboratory

Product overview

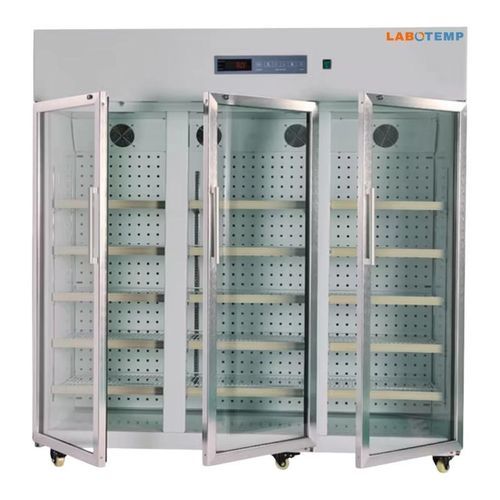

Labotemp Pharmaceutical & Vaccine Refrigerator PHR-06 is engineered for reliable, large-capacity medical storage. With a 1160 L capacity and an adjustable temperature range of +2°C to +8°C, it provides uniform cooling for vaccines, pharmaceuticals and biological samples. The forced-air cooling system and automatic defrost maintain consistent conditions throughout the chamber. Constructed with a 304 stainless-steel interior and a durable galvanized steel exterior, the unit is designed for hygiene and easy maintenance, making it suitable for hospitals, research laboratories and pharmaceutical facilities.

Why choose PHR-06

• High-volume capacity: supports large storage loads while maintaining target temperatures.
• Optimized airflow: even temperature distribution across all shelves and zones.
• Industrial-grade construction: 304 stainless-steel inner chamber and reinforced exterior for long service life in clinical environments.
• Energy-effective cooling: Secop compressor delivers reliable performance with reduced power draw.
• Integrated audible and visual alarms for high/low temperature events and door security.

Features

• Alarm system (audible and visual).
• Large 1160 L capacity with adjustable temperature range of +2°C to +8°C.
• High-efficiency Secop compressor and Germany EBM condensing fan for stable cooling.
• Air cooling system with automatic defrost for uniform temperature distribution.
• Microprocessor control with electronic thermostat and digital display for accurate monitoring.
• Durable galvanized steel exterior and 304 stainless-steel interior for long service life.
• Door security with key lock.

Applications

• Designed for medical, laboratory and pharmaceutical use — suitable for storing vaccines, reagents and biological samples under controlled temperatures.

Technical specifications

• Model: PHR-06
• Capacity: 1160 L (40.96 cu.ft.)
• Temperature range: 2-8°C, adjustable
• Compressor: Secop compressor
• Voltage: 220V 50Hz / 110V 60Hz
• Input power: 650 Watt
• Cooling type: Air cooling
• Thermostat: Electronic
• Display: Digital display
• Exterior size: 1800 x 745 x 1870 mm
• Inner size: 1680 x 610 x 1380 mm
• Net weight: 171 kg
• Exterior material: Galvanized sheet sprayed
• Inner material: 304 stainless steel
• Lock key: Yes
• Control system: Microprocessor control
• Ambient temperature (operating): 16-32°C
• Environmental humidity: 20-80%
• Alarm: Audible and visual alarm for high and low temperature
