Pharmacy refrigerator PHR-12

for vaccinesfor hospitalslaboratory

Product overview

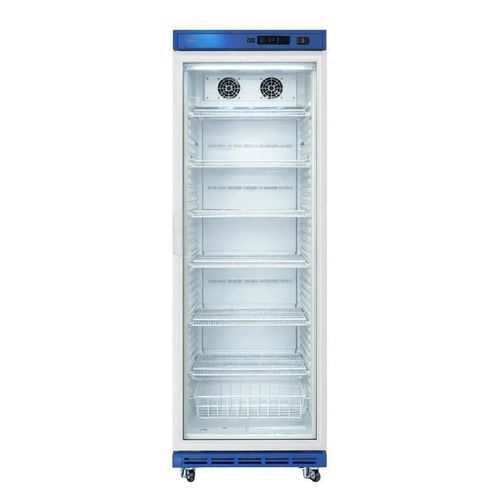

Labotemp Pharmaceutical and Vaccine Refrigerator PHR-12 is a professional glass-door refrigerator for safe storage of vaccines, medicines and other temperature-sensitive pharmaceutical products. It maintains a stable 2–8°C range (setpoint 5°C ±3°C) and offers 345 L usable volume for organized storage. The unit features a double-layer tempered glass door with aluminum frame, internal LED lighting and a keyed door lock to ensure visibility, security and controlled access.

Performance and safety
Equipped with an Embraco inverter compressor and forced air-cooling, the PHR-12 delivers uniform temperature distribution and efficient cooling. A digital display with automatic defrost enables easy monitoring and continuous operation. Built with 50 mm cyclopentane insulation and R600a refrigerant, it provides strong thermal performance. Safety and monitoring functions include high/low temperature alarm, door-open alarm, sensor fault alarm, power-failure alarm with backup battery, remote alarm notification, USB data export and humidity monitoring.

Specifications (table view)
Temperature Range : 2–8°C
Temperature Setting : 5°C ±3°C
Volume : 345 L
Compressor : Embraco Inverter Compressor
Compressor Type : Fixed Frequency
Refrigerant : R600a
Refrigeration Method : Air Cooling
Baskets Number : 7 (6 Shelves + 1 Basket)
Basket Height : 45 mm Minimum Adjustable
Door Type : Double-layer tempered glass, Aluminum frame with defrost function
Inner Size (L×W×H) : 500 × 510 × 1550 mm
Product Size (L×W×H) : 606 × 680 × 1840 mm
Packing Size (L×W×H) : 650 × 730 × 1925 mm
Net / Gross Weight : 82 / 91 kg
Package : Standard Export Package
Alarm Method : Sound & Light Alarm
Alarm Type : High Temperature / Low Temperature / Door Open / Sensor Fault / Remote Alarm Notification / Power Failure Alarm (Battery) / Battery Low Voltage Alarm
Specifications : Humidity monitoring, USB interface, overload protection, door with lock & key, LED light, double-layer tempered glass door, temperature measuring hole, 50 mm foam wall

Features

• 2–8°C cooling range with stable control at 5°C ±3°C
• Microcomputer-based precise temperature control system
• Digital temperature display for accurate monitoring
• Forced air-cooling frost-free refrigeration system
• High-efficiency air-cooled condenser for fast cooling
• Uniform temperature distribution inside the cabinet
• Dual sensor temperature monitoring for enhanced safety
• Multiple alarm system (high/low temperature, door open, sensor fault)
• Power failure alarm with backup battery
• Remote alarm notification support
• Double-layer tempered glass door with LOW-E coating
• Door with safety lock and key
• Automatic door closing design
• Adjustable storage shelves and basket
• Internal LED lighting for clear visibility
• Energy-efficient inverter compressor
• USB interface for temperature data export
• Humidity monitoring and overload protection system
• Aluminum door frame with defrost function
• 50 mm thick insulation foam for better temperature stability

Applications

• Storage of vaccines and immunization products
• Storage of blood samples and biological specimens
• Storage of medicines and pharmaceutical products
• Storage of laboratory reagents and chemicals
• Use in hospitals and healthcare centers
• Use in diagnostic laboratories
• Use in research laboratories and biotechnology facilities
• Use in pharmaceutical companies and medical institutes
• Storage of clinical test samples
• Storage of temperature-sensitive medical materials

Technical specifications

• Temperature Range: 2–8°C
• Temperature Setting: 5°C ±3°C
• Volume: 345 L
• Compressor: Embraco Inverter Compressor (Fixed Frequency)
• Refrigerant: R600a
• Refrigeration Method: Air Cooling
• Insulation: 50 mm cyclopentane / 50 mm foam wall
• Door: Double-layer tempered glass with aluminum frame and defrost function, LOW-E coating, lock & key
• Internal Lighting: LED
• Shelves / Baskets: 7 (6 shelves + 1 basket), adjustable; basket height min 45 mm
• Dimensions (Inner L×W×H): 500 × 510 × 1550 mm
• Dimensions (Product L×W×H): 606 × 680 × 1840 mm
• Packing Size: 650 × 730 × 1925 mm
• Net / Gross Weight: 82 / 91 kg
• Alarms: Sound & Light; high/low temp, door open, sensor fault, remote notification, power failure (battery), battery low voltage
• Data & Monitoring: Digital display, dual sensors, USB data export, humidity monitoring
• Protection: Overload protection, automatic defrost, uniform forced-air cooling
