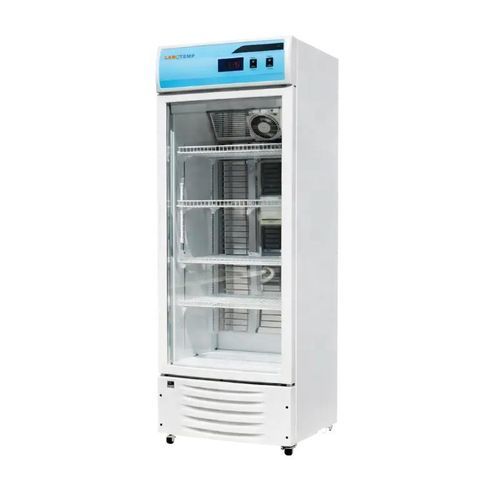

Pharmacy refrigerator PHR-10

for vaccineshospitallaboratory

Overview
Labotemp Pharmaceutical and Vaccine Refrigerator PHR-10 is a 198L Glass Door Pharmacy Refrigerator engineered for accurate 2–8 °C temperature control to safeguard vaccines, insulin, and other temperature-sensitive medical products. Driven by a microprocessor controller and a forced-air fan system, it delivers uniform cooling, fast temperature recovery, and stable cold-chain performance. The LED digital display enables precise monitoring. A single glass door with safety lock and interior LED lighting improves visibility and workflow in laboratories and pharmacy environments. The unit uses R600a CFC-free refrigerant for eco-friendly operation and incorporates comprehensive alarm protection (high/low temperature, power failure, door-ajar, sensor error) with optional remote alarm support. Durable color-sprayed steel construction, auto defrost, low vibration and low noise operation make it suitable for hospitals, research labs, vaccination centers and clinical facilities requiring controlled medicine storage.

Key benefits

• Uniform temperature stability via forced-air cooling for cold-chain safety
• Comprehensive alarm protection for product and patient safety
• ISO 13485:2016 certified, CE marked, WHO PQS aligned for regulatory compliance
• Energy-efficient and low-noise operation suitable for clinical environments

Features

• Auto defrost
• Stable and reliable pharmaceutical storage performance
• Energy-efficient operation
• Fast temperature recovery after door opening
• Low vibration cooling suitable for sensitive products
• Easy-to-clean interior design
• Compact and space-saving cabinet structure
• Quiet operation for clinical environments
• Durable construction for long-term use

Applications

• Controlled storage of temperature-sensitive pharmaceuticals and biologics in hospitals, pharmacies, vaccination centers, and diagnostic labs
• Storage of insulin, vaccines, reagents and clinical samples requiring uniform airflow, alarm protection and data monitoring
• Supports GMP-compliant storage, cold-chain maintenance and quality control documentation environments

Optional accessories

• Portable temperature recorder with USB interface
• Temperature record printer
• Remote alarm (wireless)
• UPS emergency power
• Solar energy power source
• DC24V-AC220V inverter

Caractéristiques / spécifications techniques

• Temperature Range: 2–8 °C
• Capacity: 198 L
• Chambers: 5
• Outside Door / Type: Single Glass Door
• Refrigerant: R600a, CFC Free
• Power Consumption: 2.5 kWh / 24h
• Input Power: 180 W
• Noise Level: 38 dB
• Voltage / Frequency: 220V / 50Hz
• Ambient Temperature: 10–32 °C
• Cooling Method: Forced Air Cooling System
• Defrost: Auto
• Temperature Controller: Microprocessor Control
• Display: LED Digital Display
• Inside Material: Color Sprayed Steel
• Outside Material: Color Sprayed Steel
• Insulation: PURF
• Alarm Functions: High/Low Temperature, Power Failure, Sensor Failure, Door Ajar, System Failure Alarm
• Alarm Type: Sound & Light
• Castor: Yes
• Lamp: LED
• Climate Type: N
• Electric Shock Resistance: Class I Type B
• Exterior Dimensions (D×W×H): 515×475×1625 mm
• Package Dimensions (D×W×H): 595×595×1695 mm
• Net Weight: 57 kg
• Gross Weight: 62 kg
