Tomography test phantom

for nuclear imaginggeneral purpose

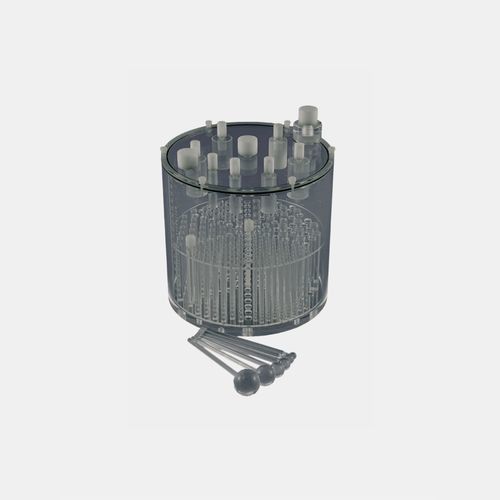

Product Description: The Flangeless Esser PET Phantom (model PET/FL/P) is a cylindrical performance phantom for PET system evaluation. Its flange-free design simplifies positioning within the scanner’s field of view and ensures reproducible measurements for acceptance testing, routine QA and research.

The phantom includes:

• Cold rods (Ø 4.8 to 12.7 mm) for spatial resolution evaluation
• Solid spheres (Ø 9.5 to 31.8 mm) for assessing contrast, visible volume and SUV accuracy

Performance and purpose: Supports testing of tumor detectability, reconstruction sensitivity, attenuation/scatter correction and SUV quantification. Recommended by the American College of Radiology (ACR) as a benchmark for PET QA and quantitative imaging protocol validation.

Applications:

• Tumor detectability and contrast evaluation
• SUV and reconstruction accuracy verification
• PET QA and acceptance testing
• Sensitivity, attenuation and scatter studies
• Research

Related References:

• PET/FL/LID-ONLY: Flangeless PET Lid only
  • Refillable cylinders Ø 8 / 12 / 16 / (3×) 25 mm
  • Volumes ≈ 1.9 / 4.3 / 7.7 / 18.7 mL
  • Lid height ≈ 38.1 mm
  • Total volume ≈ 6.2 L
  • Material: clear PMMA
• PET/FL-X2/P: Flangeless Esser PET Phantom with Deluxe ECT Lid (second lid version, see Jaszczak Phantom sheet for details)

Models:

• PET/FL/P - Flangeless Esser PET Phantom

Technical specifications:

• Cylinder inner diameter: approx. 209 mm
• Cylinder inner height: approx. 186 mm
• Wall thickness: approx. 6.4 mm
• Cold rods: Ø 4.8 / 6.4 / 7.9 / 9.5 / 11.1 / 12.7 mm
• Rod height: 8.8 cm
• Solid spheres: Ø 9.5 / 12.7 / 15.9 / 19.1 / 25.4 / 31.8 mm
• Sphere center to mounting surface: approx. 127 mm
• Material: clear PMMA
• Total volume (example lid): approx. 6.2 L
