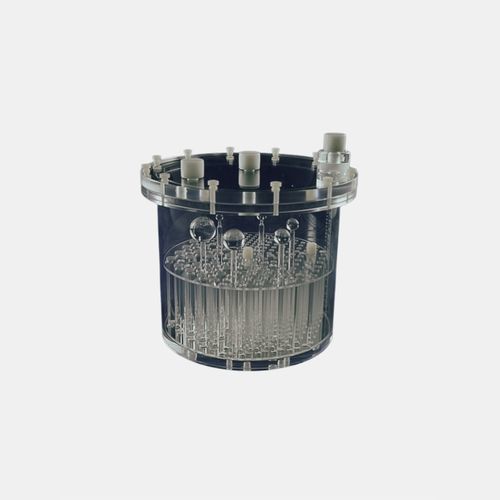

Tomography test phantom JASZCZAK

for nuclear imaginggeneral purpose

Overview
The JASZCZAK phantom for SPECT delivers consistent information on the performance of any SPECT or PET system. Multiple performance characteristics of SPECT systems using a gamma camera are evaluated from a single scan of the phantom. SPECT phantoms are available in two models: the Deluxe model for high-definition cameras and the Standard model for lower-resolution systems.

Phantom applications

• Evaluation of system performance at the level of collimator, artifacts, calibration and reconstruction parameters
• Acceptance testing
• Highly flexible and "flaccid" construction
• Routine quality assurance and quality control
• Assessment of centre-of-rotation error
• Evaluation of non-uniformity artifact
• Assessment of gantry rotation variations on spatial resolution
• Evaluation of reconstruction filters on spatial resolution
• Evaluation of attenuation and scatter compensation
• Volume sensitivity for a single slice
• Total system volume sensitivity
• Lesion detectability

Characteristics

• Internal system dimensions: 21.6 x 18.6 cm
• Cylinder wall thickness: 3.2 mm
• Volume: 6.75 L
• Volume with inserts: 6.1 L
• Height of cold rod inserts: 8.8 cm
• Height of spheres above base plate: 12.7 cm

Model formats and details
ECT/DLX/P Phantom for SPECT, Deluxe model
Cold rod diameters: 4.8 mm, 6.4 mm, 7.9 mm, 9.5 mm, 11.1 mm, 12.7 mm
Solid sphere diameters: 9.5 mm, 12.7 mm, 15.9 mm, 19.1 mm, 25.4 mm, 31.8 mm

ECT/STD/P Phantom for SPECT, Standard model
Cold rod diameters: 6.4 mm, 7.9 mm, 9.5 mm, 11.1 mm, 12.7 mm, 16.0 mm
Solid sphere diameters: 12.7 mm, 15.9 mm, 19.1 mm, 25.4 mm, 31.8 mm, 38 mm

Models

• ECT/DLX/P Phantom for SPECT, Deluxe model
• ECT/TRI/I Triple line insert
• 043-751 Phantom insert, hot spot
• 043-610 Phantom insert, ultra Deluxe cold rod
• 043-763 Phantom insert, hollow sphere
• 043-764 Phantom insert, hollow microsphere
• 043-777 Phantom insert, cardiac

Technical characteristics / specifications

• Internal dimensions: 21.6 x 18.6 cm
• Cylinder wall thickness: 3.2 mm
• Total volume: 6.75 L
• Volume with inserts: 6.1 L
• Height of cold rod inserts: 8.8 cm
• Height of spheres above base plate: 12.7 cm
• Deluxe model (ECT/DLX/P) — Cold rods: 4.8 mm, 6.4 mm, 7.9 mm, 9.5 mm, 11.1 mm, 12.7 mm; Solid spheres: 9.5 mm, 12.7 mm, 15.9 mm, 19.1 mm, 25.4 mm, 31.8 mm
• Standard model (ECT/STD/P) — Cold rods: 6.4 mm, 7.9 mm, 9.5 mm, 11.1 mm, 12.7 mm, 16.0 mm; Solid spheres: 12.7 mm, 15.9 mm, 19.1 mm, 25.4 mm, 31.8 mm, 38 mm
• Available accessories / inserts: triple line insert, hot spot insert, ultra Deluxe cold rod, hollow sphere, hollow microsphere, cardiac insert (technical references listed in the Models section)
