Nuclear imaging test phantom

torso

Description

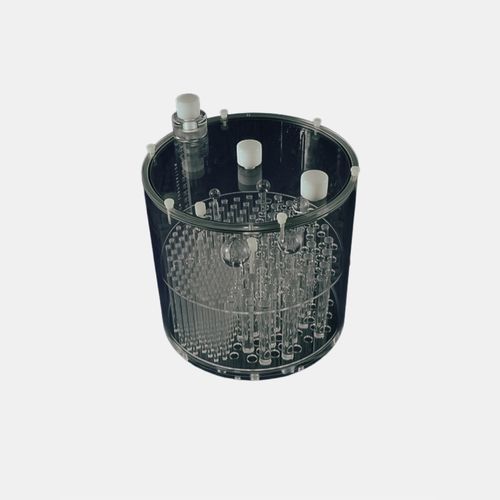

The Jaszczak Deluxe flangeless phantom is a cylindrical phantom designed to evaluate the performance of high-resolution SPECT and PET systems. Its flangeless configuration simplifies positioning and enhances reproducibility of acquisitions. Recommended by the ACR, it is used for acceptance testing, routine quality control and advanced studies of spatial resolution, uniformity, artefacts, center-of-rotation and the effects of reconstruction parameters and attenuation/scatter corrections.

Features

• Flangeless cylindrical phantom for simplified positioning
• Compatible with high-resolution SPECT and PET systems
• ACR-recommended phantom
• Body, inserts and spheres made of transparent PMMA
• Cold rod inserts for spatial resolution assessment
• Solid spheres for system performance analysis
• Suitable for acceptance testing, routine QC and research

Cylinder dimensions

• Inner diameter: ~209 mm
• Inner height: ~186 mm
• Wall thickness: ~6.4 mm
• Empty volume: ~6.3 L
• Volume with cold rod insert: ~5.5 L
• Volume with PET lid without insert: ~6.2 L

Solid spheres

• Diameters: 9.5 – 12.7 – 15.9 – 19.1 – 25.4 – 31.8 mm
• Center height from base plate: ~127 mm

Models

• ECT/FL-DLX/P - Jaszczak Deluxe 'Flangeless'

Technical characteristics / specifications

• Type: flangeless cylindrical phantom for nuclear imaging (SPECT/PET)
• Materials: transparent PMMA for body, inserts and spheres
• Design: flangeless to facilitate positioning and reproducibility
• Main uses: acceptance testing, routine QC, studies of spatial resolution, uniformity, artefacts, center-of-rotation, evaluation of reconstruction parameters and attenuation/scatter corrections
• Inserts: cold rod inserts to assess spatial resolution
• Spheres: series of solid spheres of varying diameters for performance analysis
• Key dimensions: inner diameter ~209 mm, inner height ~186 mm, wall thickness ~6.4 mm
• Volumes: empty ~6.3 L; with cold rod insert ~5.5 L; with PET lid without insert ~6.2 L
• Sphere center height: ~127 mm
