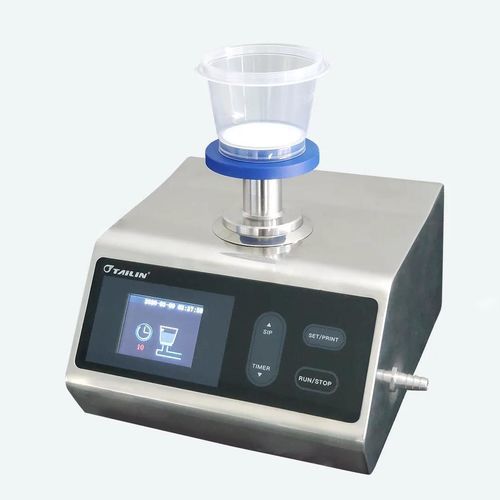

Microbial limit detector HTY-102S

laboratorybenchtop

Product Introduction
The HTY-102S Microbial Limit Tester is designed to meet pharmacopeial requirements for membrane filtration tests. It integrates a single pump head system with SIP-compatible sterilization, a high-performance diaphragm pump and direct waste discharge. Using interchangeable pump heads with funnels or canisters, it provides a complete membrane-filtration workflow for retaining microorganisms on a membrane for subsequent incubation and colony counting.

Key Features

• Color LCD with tempered glass touch panel for clear operation.
• Built-in SIP automatic disinfection program for pump heads.
• Countdown runtime function; independent runtime settings per pump head.
• Four selectable pump head types; pump heads autoclavable at 121°C.
• Quick flame-sterilization option for rapid turnover between assays.
• Integrated high-performance diaphragm pump with direct drainage—no filter bottles required.
• Equipped with check valve to prevent backflow and cross-contamination.

Applications

• Pharmaceuticals: Microbial limit testing of purified water, water for injection and other drug products.
• Food & Beverage: Total colony counts in beverages, mineral water and purified water.
• Disease Control & Environmental Monitoring: Total bacterial counts and pathogen screening in samples such as air-conditioning condensate and drinking water.

Technical Specifications

• Power: AC 220V/50Hz, 60W
• Flow rate: 1500 mL/min (single pump)
• Consumables / Pump heads: S60, F47, F60-R250, F47B
• Noise: ≤65 dB(A) under load
• Dimensions: 20.0 x 23.5 x 11.0 cm
• Body material: 316L stainless steel
• Weight: 4 kg (with PF47, PB47) / 4.5 kg (with PF60) / 5 kg (with PS60)
