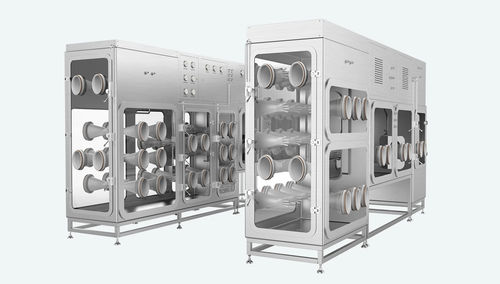

Containment isolator

for the pharmaceutical industryfor research and developmentfor active pharmaceutical ingredients

Introduction
Designed for laboratory environments handling high-potency compounds and multifunctional chemical synthesis. Compact footprint with overall dimensions 5000 × 4000 × 2800 mm (L × W × H). Net chamber height ≥ 2200 mm to accommodate a 30 L glass reactor and chromatography column.

Features

• Designed to meet OEB5 containment requirements with OEL < 0.01 μg/m³.
• Installed in a laboratory room using the room's fresh air supply.
• Integrated for operations including weighing, dispensing, capping, stirring, ultrasonic equipment, feeding, extraction, rotary evaporation, column chromatography and centrifugation.
• Customisable layouts available to fit site configuration and room space.

Key elements / equipment highlights

• H14 PUSH-PUSH HEPA filtration for supply and exhaust.
• Continuous liner system for safe material transfer and containment.
• Explosion-proof LED lighting, ATEX-rated sockets and provisions for blowers and computers.

Applications
Suitable for multifunctional laboratory processes in pharmaceutical and chemical research and production.

• High-potency laboratories: weighing, dispensing, sampling, solution preparation, analysis, moisture titration, IR scanning and related tasks.
• Active Pharmaceutical Ingredients (APIs): centrifugation, filtration, drying, mixing, milling, weighing and dispensing.
• Solid dosage development: granulation, drying, mixing, tablet compression and coating processes.

Technical specifications

• Air supply and exhaust volume: ≥ 1000 m³/h
• Net weight: 3000 kg
• Utilities: Clean compressed air 0.6 MPa ≤ P ≤ 0.8 MPa
• Power: 380 V, 9.0 kW (isolator)
• Overall size (mm): 5000 × 4000 × 2800 (L × W × H)
• Doors: mechanical press sealing; observation window: 12 mm tempered glass
• Exhaust: top exhaust port with ducting connected to outdoors
