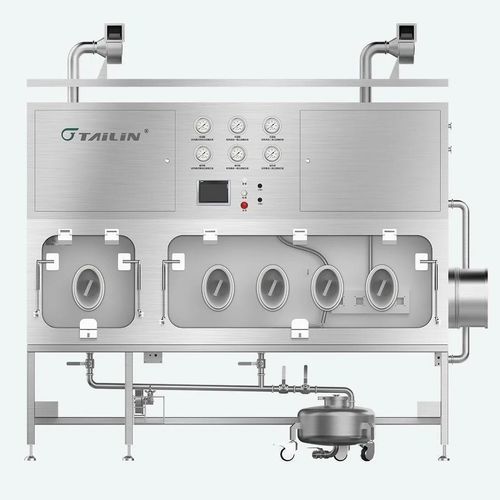

Containment isolator

for the pharmaceutical industrydispensingfilling

Introduction
The Isolator for Weighing & Sampling is mainly used for personal protection in the powder handling process. Tailin Containment Isolator is designed to protect operators during operations such as weighing, dispensing, drying, pressing, and filling of highly potent and toxic products. The system generates turbulent airflow through a high-pressure exhaust fan, maintaining negative pressure inside the working area to prevent cross-contamination between internal and external environments and to ensure operator and environmental safety.

Key Benefits

• Prevents light solid powder from spilling and rising during operations.
• Avoids cross-contamination of powder and reagents.
• Protects personnel from inhalation hazards posed by powders and reagents.

Features

• Meets OEB5 personal protection requirements and passes third-party test, OEL < 0.05 μg/m³.
• Installed in a general background while ensuring an internal static Class C environment.
• Weighing accuracy options: 1/10,000, 1/100,000 and 1/1,000,000.
• Materials transfer via continuous liner system and Rapid Transfer Port (RTP).
• Equipped with SS316L mobile liquid waste container for easy handling of highly potent liquids.

Applications
Used in laboratories for weighing and sampling. Typical application areas include high-potency laboratories, active pharmaceutical ingredient (API) processing (centrifugation, filtration, drying, mixing, milling, weighing, dispensing), and solid dosage form processing (granulation, drying, mixing, compression, coating).

Specifications (table)

• Fresh Air Volume: ≥200 m³/h
• Net Weight: ≈ 700 kg
• Public Utilities: Clean compressed air 0.6 MPa ≤ P ≤ 0.8 MPa
• Power (isolator only): 220 V, 2.0 kW
• Operation Chamber Space (mm): 1800 x 750 x 800 (L x W x H)
• Transfer Chamber Space (mm): 800 x 750 x 800 (L x W x H)
• Doors: All doors equipped with inflatable seals; observation window 15 mm tempered glass
• Exhaust: Top exhaust port with outdoor piping connection
