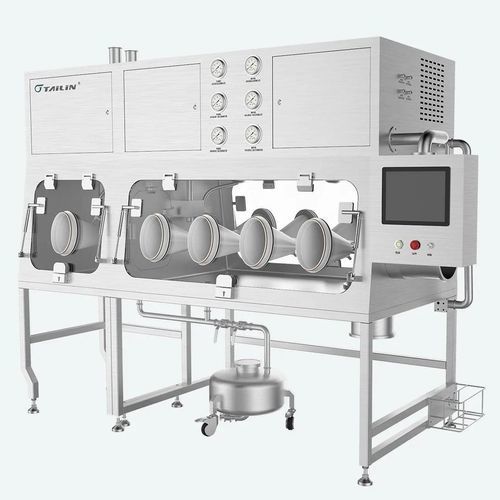

Containment isolator

for the pharmaceutical industrydispensingfor active pharmaceutical ingredients

Product overview
The Tailin containment isolator is engineered to prevent spillage and airborne dispersion of light powder reagents and medicines during weighing and dispensing operations. It provides high-level containment to avoid cross-contamination between powders and reagents and to protect operators when handling highly potent and toxic compounds (HPAPI). The unit maintains negative pressure within the work chamber via a high-pressure exhaust system and turbulent airflow management, ensuring separation between internal and external environments.

Key features

• Fully explosion-proof design compliant with EXd II BT4 requirements.
• Dispensing range from 1 g up to 11,000 g, packaged in 1–30 bags.
• Meets OEB5 containment level; third-party tested with OEL < 0.05 μg/m³.

Additional equipment / options

• H14 push-push HEPA filtration
• Continuous liner system for safe product transfer
• Explosion-proof LED lighting, sockets, blower and computer

Applications
Designed for weighing and dispensing of HPAPI and other highly potent powders in pharmaceutical development, production support and analytical laboratories, ensuring operator and environmental safety.

Typical application areas and operations

• High-potency laboratories: weighing, dispensing, sampling, solution preparation, analysis, moisture titration, infrared scanning, etc.
• Active Pharmaceutical Ingredients (APIs): centrifugation, filtration, drying, mixing, milling, weighing and dispensing processes.
• Solid dosage manufacturing: granulation, drying, mixing, tablet compression, coating and related processes.

Technical specifications

• Airflow pattern: Turbulent
• Overall size (L x W x H, mm): 3200 x 1240 x 2300
• Operation chamber (L x W x H, mm): 1800 x 1200 x 800
• Transfer chamber (L x W x H, mm): 850 x 770 x 800
• Fresh air supply volume: ≤ 200 m³/h
• Public utilities: Clean compressed air 0.6 MPa ≤ P ≤ 0.8 MPa
• Net weight: 1000 kg
• Power: 380 V, 3 kW, 25 A (isolator only)
• Doors: Inflatable seals on all doors; observation window: 15 mm tempered glass
• Exhaust: Top exhaust port with piping routed to outdoor exhaust
