Sterility testing pump HTY-ASL01 ISO/02 ISO

Product Introduction

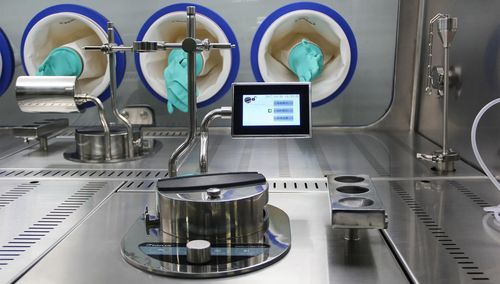

The Tailin HTY-ASL01 ISO/02 built-in sterility test pump offers selectable Normal and SOP modes and can connect to a PC for SOP uploading. It automates membrane filtration sterility testing to reduce manual errors and improve repeatability. Key intelligent functions include linear tube loading, automatic tube clamping and pressure safety protection, making it suitable for isolator installation and controlled cleanroom environments.

Features

• Tempered glass touch panel for intuitive operation.
• SOP and Normal modes; SOP mode stores up to 300 test recipes for standardized workflows.
• Three pressure modes: Pressure Alert, Regulation and Normal.
• High-performance motor with digital current control for stable operation.
• Stepless speed regulation with speed memory function.
• Safety hood to prevent glove entrapment during isolator use.
• Four protection functions: overcurrent, overvoltage, overload and block protection.

Additional Highlights

• Designed for integration with sterility test isolators to free bench space.
• Continuous pressure monitoring for process safety.
• Compatible with canisters from other manufacturers.

Applications
Intended for sterility testing of sterile preparations including antibiotics and bacteriostatic formulations, sterile APIs, IV fluids, aqueous injections, sterilized medical instruments and WFI. Also suitable for membrane filtration microbial limit tests in pharmaceuticals, food and beverage industries and other regulated sectors.

Specifications (table)
Power supply: AC95-260V/50-60Hz
Speed: 1-300 rpm
Bottle holder height: 33 cm
Power: 120 W
Timer: 1-999 s
Net weight: 19 kg
Operating ambient temperature: 5–40 °C
Test recipes: up to 300 groups
Material: 316L stainless steel
Ambient relative humidity: below 75% (no condensation)
Screen: 4.3-inch color LCD
Dimensions: 23.0 x 30.5 x 1.0 cm (not incl. the sunken part)

Technical specifications

• Power supply: AC95-260V / 50-60Hz
• Speed range: 1–300 rpm
• Bottle holder height: 33 cm
• Power rating: 120 W
• Timer range: 1–999 s
• Net weight: 19 kg
• Operating ambient temperature: 5–40 °C
• Test recipes capacity: up to 300 groups
• Construction material: 316L stainless steel
• Ambient relative humidity: below 75% (no condensation)
• Screen: 4.3-inch color LCD
• Dimensions: 23.0 x 30.5 x 1.0 cm (not including the sunken part)
