Containment isolator

for the pharmaceutical industrydispensingfor powder handling

Product introduction

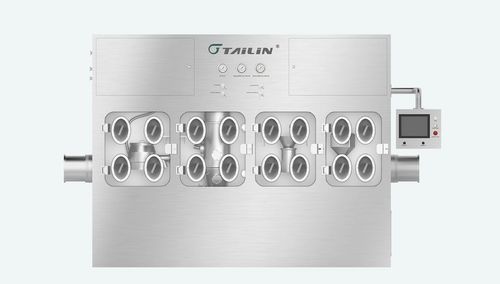

Tailin Containment Isolator is designed to protect operators during handling of highly potent and toxic materials in operations such as weighing, dispensing, drying, pressing and filling. The isolator is suitable for pharmaceutical production, cosmetics, bioproduct research and physico-chemical laboratory work. A high-pressure exhaust fan generates a turbulent airflow and maintains negative pressure inside the work area to prevent cross-contamination and protect personnel and environment.

Key Components / Options

• H14 PUSH-PUSH HEPA
• Continuous liner system
• Siemnes touch screen

Features

• Integrated granulation, mixing, drying and milling capabilities
• Meets OEB4 personal protection requirements

Applications
Designed for use in solid dosage production lines and laboratories handling high-potency compounds.

High-Potency Laboratory
Operations: weighing, dispensing, sampling, solution preparation, analysis, moisture titration, infrared scanning and related tasks.

Active Pharmaceutical Ingredients (APIs)
Processes: centrifugation, filtration, drying, mixing, milling, weighing and dispensing of active substances.

Solid Dosage Forms
Processes: granulation, drying, mixing, tablet compression, coating and other solid formulation steps.

Technical specifications

• Fresh air supply volume: ≥100 m³/h
• Operation chamber internal space (L×W×H, mm): 3175 × 539 × 1043
• Public utilities: clean compressed air 0.6 MPa ≤ P ≤ 0.8 MPa
• Net weight: 600 kg
• Overall size (L×W×H, mm): 4013 × 794 × 2479
• Power: 220 V, 3 kW, 10 A (isolator only)
• Doors: inflatable seals on all doors; observation window of 15 mm tempered glass
• Top: exhaust outlet connected to an exhaust blower
