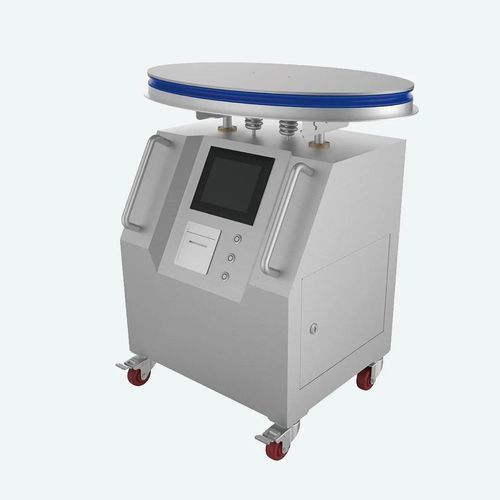

Integrity tester HSIT-01

Introduction
The HSIT-01 half-suit integrity tester is designed to verify the integrity of a half-suit installed on isolators used in aseptic processes. It performs controlled filling and pressure monitoring to detect leaks or assembly defects before production start.

Features

• High-sensitivity pressure sensors monitor filling pressure and trigger automatic stop at preset values.
• Emergency stop protects the half-suit and equipment from overpressure or abnormal conditions.
• Rotating port facilitates alignment and connection to the half-suit port.
• Mobile low-profile design allows the unit to slide under the half-suit for in-situ testing.
• PLC control with touchscreen ensures clear operator interface and configurable test parameters.

Applications

• Pharmaceutical and biotechnology aseptic production isolator testing
• Food industry hygiene and containment checks
• High-risk industrial protection systems verification
• Cleanroom and isolator commissioning and maintenance

Technical specifications

• Model: HSIT-01
• Function: Integrity check of half-suits installed on isolators
• Pressure monitoring: High-sensitivity sensors with automatic stop at preset pressure
• Safety: Emergency stop and automatic shutdown on preset limits
• Mechanics: Rotating half-suit port for accurate alignment
• Design: Mobile unit with low profile to slide under the half-suit
• Control: PLC control with touchscreen for parameter setting and test logging
• Operation: Automatic stop on reaching preset pressure to prevent damage to the half-suit
