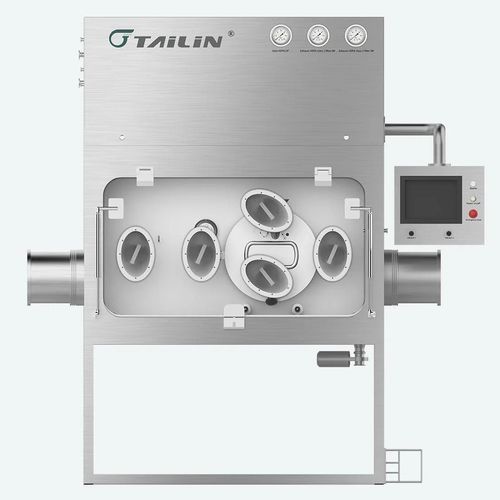

Containment isolator

for the pharmaceutical industryfor highly potent active pharmaceutical ingredientsfor production

Introduction Tailin Containment Isolator is designed to protect operators during operations such as weighing, dispensing, drying, pressing and filling of highly potent or toxic products. It is intended for pharmaceutical production, cosmetic manufacturing, bioproduct research and physico-chemical laboratory work. The system creates a turbulent airflow driven by a high-pressure exhaust fan and maintains negative pressure inside the work chamber to prevent cross-contamination between the internal and external environments and to protect personnel and the surrounding environment.

Features

• Integrated coating machine.
• Compliant with OEB4 containment requirements.
• H14 push–push HEPA filtration.
• Continuous liner system for product containment.
• Siemens touchscreen control interface.
• All doors fitted with inflatable seals; observation window made of 15 mm tempered glass.
• Top exhaust port for connection to outdoor or HVAC ducting.

Applications

• Coating processes for solid dosage forms.
• High-potency laboratory operations: weighing, dispensing, sampling, solution preparation, analysis, moisture titration, infrared scanning.
• API handling: centrifugation, filtration, drying, mixing, milling, weighing and dispensing.
• Solid formulation processes: granulation, drying, mixing, tableting, coating and related solid dosage production steps.

Technical specifications

• Operation chamber (L×W×H): 1600×700×1000 mm.
• Overall size (L×W×H): 2438×960×2490 mm.
• Net weight: 450 kg.
• Power: 220 V, 3 kW (isolator only).
• Public utilities: clean compressed air 0.6 MPa.
• Doors: inflatable seals; observation window: 15 mm tempered glass.
• Exhaust port located on the top for connection to outdoor or HVAC ducts.
• Note: data provided for reference only; final drawings and parameters to be confirmed during design qualification (DQ).
