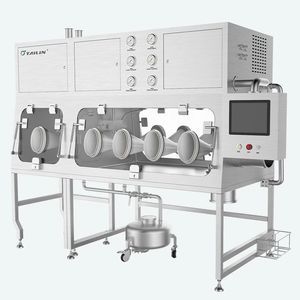

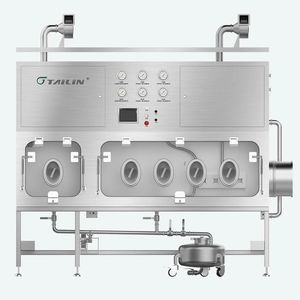

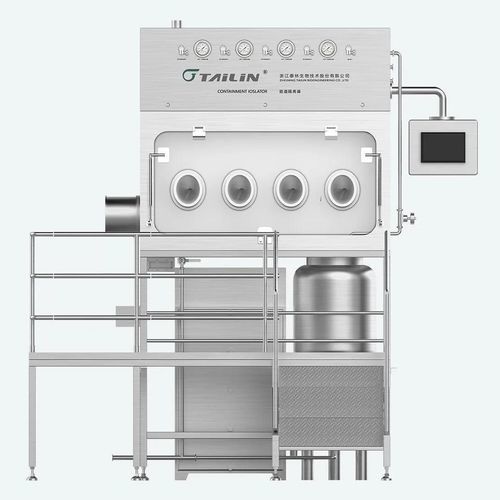

Containment isolator

for the pharmaceutical industrydispensingsampling

Product Introduction
Tailin Containment Isolator is designed to protect operators during operations such as weighing, dispensing, drying, pressing, and filling of highly potent and toxic products. It is mainly applied in pharmaceuticals, cosmetics, bioproduct research, and physico-chemical laboratory studies. The system generates turbulent airflow through a high-pressure exhaust fan, maintaining negative pressure inside the working area. This design effectively prevents cross-contamination between internal and external environments, ensuring the safety of both personnel and the surrounding environment.

Key Design Features

• The isolator chamber is equipped with an independent air handling unit.
• The front door is customized and supported by gas spring; it is hatchback opened for good accessibility to the equipments.
• A purified water interface is installed in the isolator to fill purified water into the container for dissolution. The dissolved solution flows out through the valve installed at the bottom.

Features

• Meet OEB5 design requirements, OEL＜0.1μg/m³.
• Fully explosion-proof design which meets the EXd II BT4 requirements.
• Integrated liquid dispensing container for continuous operation of weighing and feeding.

Applications
Used for the dissolution of crude peptides during API processing. Suitable for high-potency laboratory operations including weighing, dispensing, sampling, solution preparation, analysis, moisture titration, infrared scanning, centrifugation, filtration, drying, mixing, milling, and solid dosage formulation processes such as granulation, drying, mixing, tablet compression and coating.

Specifications
Fresh Air Supply Volume: ≥100m³/h
Operation Chamber Space (mm): 1800x750x800 (L*W*H)
Public Utilities: Clean compressed air 0.6Mpa≤P≤0.8Mpa
Net Weight: 500kg
Overall Size (mm): 3600x1350x3200 (L*W*H)
Power: 380V, 1.5kw
Doors: All doors are equipped with inflatable seal; the observation window is made of 15mm thickness tempered glass.
Exhaust: It is equipped with an exhaust port on the isolator top, and the piping is connected to the outdoor.

Technical specifications

• Fresh Air Supply Volume: ≥100m³/h
• Operation Chamber Space (mm): 1800 x 750 x 800 (L*W*H)
• Public Utilities: Clean compressed air 0.6Mpa ≤ P ≤ 0.8Mpa
• Net Weight: 500 kg
• Overall Size (mm): 3600 x 1350 x 3200 (L*W*H)
• Power: 380 V, 1.5 kW
• Doors: Inflatable seals on all doors; observation window: 15 mm tempered glass
• Top exhaust port with piping connection to outdoors
