Research and development isolator

for the pharmaceutical industrycontainmentdispensing

Product overview

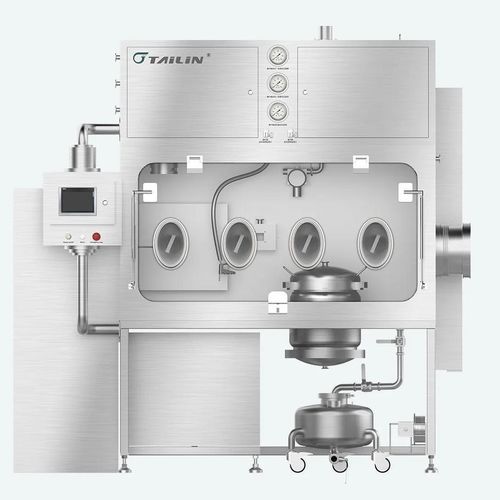

Tailin containment isolator is designed to protect operators during weighing, dispensing, drying, pressing and filling of highly potent or toxic substances. It is intended for pharmaceutical, cosmetic, bioproduct research and physico-chemical laboratory applications. The system maintains negative pressure via a high-pressure exhaust fan and turbulent airflow to prevent cross-contamination between the internal workspace and external environment, safeguarding personnel and surroundings.

Key features

• Complies with OEB4 containment level for operator protection.
• Fully explosion-proof design meeting EXd II BT4 classification.
• Integrated drum filter and drying oven.
• H14 PUSH-PUSH HEPA filtration.
• Continuous liner transfer system.
• Explosion-proof LED lighting, power socket, blower and touchscreen controls.

Applications

• Filtration and drying of Active Pharmaceutical Ingredients (APIs).
• High‑potency laboratory operations: weighing, dispensing, sampling, solution preparation, analysis, moisture titration, infrared scanning.
• API processes: centrifugation, filtration, drying, mixing, milling, weighing and dispensing.
• Solid dosage manufacturing: granulation, drying, mixing, tablet compression and coating.

Technical specifications

• Fresh air supply volume: ≥100 m³/h
• Working chamber internal dimensions (mm): 1800 × 800 × 1000 (L × W × H)
• Utilities: Clean compressed air 0.6 MPa ≤ P ≤ 0.8 MPa
• Net weight: 700 kg
• Overall dimensions (mm): 2637 × 110 × 2324 (L × W × H)
• Power: 380 V, 2 kW (isolator only)
• Doors: all doors fitted with inflatable seals; observation window: 15 mm tempered glass
• Exhaust: outlet on top of isolator, ducting to outdoors

Compliance and notes

• Designed to minimize cross-contamination and to meet laboratory containment and explosion-proof requirements.
• This proposal is for reference only; final drawings and qualifications must be confirmed by DQ.
