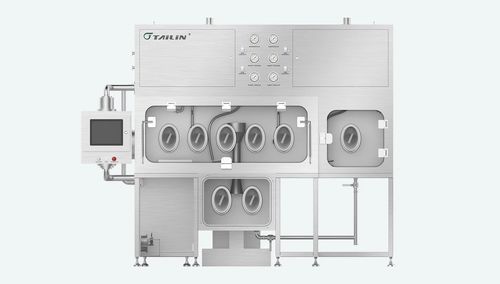

Pharmaceutical isolator

for research and developmentfor powder handlingfor highly potent active pharmaceutical ingredients

Introduction
Tailin Containment Isolator is engineered to protect operators during handling of highly potent or toxic substances, including operations such as weighing, dispensing, drying, pressing and filling. It is intended for pharmaceutical production and R&D, cosmetics laboratories, bioproduct research and physico-chemical laboratory work. The system maintains a negative pressure in the working chamber by generating turbulent airflow with a high-pressure exhaust fan to prevent cross-contamination between the interior and the surrounding environment.

Features

• Integrated hammer mill crusher and electronic scale for combined milling and weighing workflows.
• Designed to meet OEB4 containment requirements for operator protection.
• All doors equipped with inflatable seals; observation window made of 15 mm tempered glass.

Applications

• Crushing, milling and weighing of Active Pharmaceutical Ingredients (APIs).
• High‑potency laboratory procedures: weighing, dispensing, sampling, solution preparation, analysis, moisture titration and infrared scanning.
• API processes: centrifugation, filtration, drying, mixing, milling and dispensing.
• Solid dosage formulation steps: granulation, drying, mixing, tablet compression and coating.

Technical specifications

• Fresh air supply volume: ≤200 m³/h
• Operation chamber internal size (mm): 1914 x 750 x 800 (L x W x H)
• Utilities: clean compressed air 0.6 MPa ≤ P ≤ 0.8 MPa
• Transfer chamber internal size (mm): 785 x 650 x 800 (L x W x H)
• Overall size (mm): 2957 x 770 x 2429 (L x W x H)
• Power: 220 V, 2 kW (isolator only)
• Net weight: 700 kg
• Doors: inflatable seals on all doors; 15 mm tempered glass observation window
• Exhaust: top exhaust port on isolator; ducting connected to external exhaust
• Note: proposal for reference only; final drawings to be confirmed during Design Qualification (DQ).
