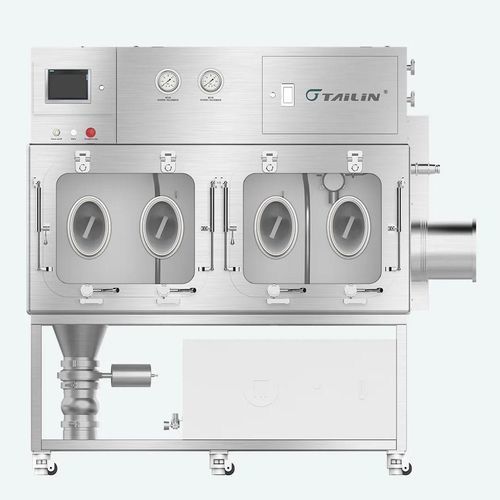

Containment isolator

for the pharmaceutical industrydispensingfilling

Product Introduction
Tailin containment isolator is designed to protect operators during tasks such as weighing, dispensing, drying, pressing and filling of highly potent or corrosive materials. The unit produces turbulent airflow by a high-pressure exhaust fan and maintains negative pressure inside the work chamber to prevent cross-contamination between the internal environment and the surrounding area, ensuring operator and environmental safety.

Features

• Fully explosion-proof design complying with EXd II BT4 requirements.
• Work chamber fabricated from pure titanium for enhanced corrosion resistance.
• Mobile and flexible design for easy repositioning.

Design Highlights

• Continuous liner system to simplify decontamination and reduce leak paths.
• Siemens touch-screen control for process monitoring and recipe management.
• H14 PUSH-PUSH HEPA filtration for high-efficiency particulate containment.

Applications
Suitable for feeding and material handling in highly corrosive or high-potency environments. Typical laboratory and production tasks include weighing, dispensing, sampling, solution preparation, moisture titration, infrared scanning, centrifugation, filtration, drying, mixing, milling, tablet compression, coating and other solid formulation and API-related processes.

Technical Specifications

• Fresh Air Supply Volume: ≥100 m³/h
• Net Weight: 500 kg
• Public Utilities: Clean compressed air 0.6 MPa ≤ P ≤ 0.8 MPa
• Power: 380 V, 1.5 kW
• Overall Size (mm): 2105 x 880 x 2000 (L x W x H)
• Operation Chamber Space (mm): 1800 x 750 x 800 (L x W x H)
• Doors: All doors use mechanical press sealing; observation window is 12 mm tempered glass
• Exhaust: Top exhaust port on the isolator; ducting to outdoor discharge
• Typical uses: weighing, dispensing, sampling, solution preparation, moisture titration, infrared scanning, centrifugation, filtration, drying, mixing, milling, tablet compression, coating and related processes
