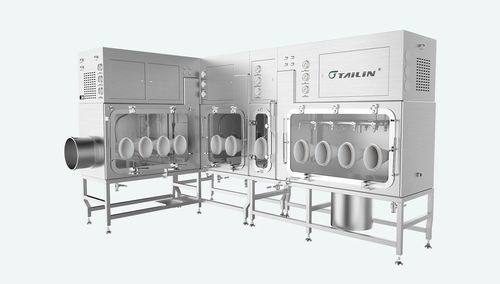

Containment isolator

for the pharmaceutical industrydispensingfor active pharmaceutical ingredients

Introduction
The isolator is installed inside a laboratory without altering the existing room structure. It is L-shaped with the right-angle side length < 240 cm, overall depth < 105 cm, and designed for a room height of 240 cm. The unit is equipped to accommodate 1 rotary evaporator, 2 electronic evaporators and 1 capping machine. A sinking freeze-dryer chamber and freeze-dryer manifold interface are reserved within the isolator; the freeze dryer connects to the chamber and manifold via a wired hose.

Features

• Designed to meet OEB5 containment requirements; OEL < 0.1 μg/m³.
• Fully explosion-proof design compliant with EXd II BT4 and ATEX standards.
• Integrated layout for freeze-dryer chamber, manifold shelf, rotary evaporator, electronic scales and capping machine.
• Installed in a laboratory room with room-supplied fresh air; custom configurations available to match site layout and available space.

Applications
Intended for laboratory freeze-drying, weighing and dispensing operations. Typical processes include precise weighing, dispensing, sampling, solution preparation, analysis, moisture titration, infrared scanning, centrifugation, filtration, drying, mixing, milling, granulation and tablet compression—processes related to APIs and solid dosage forms.

Technical specifications

• Fresh air volume: ≥400 m³/h
• Weighing and capping space (mm): 1550 × 750 × 2400 (L × W × H)
• Rotary evaporator space (mm): 1800 × 850 × 2400 (L × W × H)
• Overall size (mm): 4000 × 2705 × 2400 (L × W × H)
• Transfer chamber space (mm): 500 × 850 × 2400 (L × W × H)
• Freeze-dryer space (mm): 1700 × 850 × 2400 (L × W × H)
• Net weight: 1400 kg
• Power: 380 V, 7.5 kW (isolator)
• Utilities: Clean compressed air 0.6 MPa ≤ P ≤ 0.8 MPa
• Lifting doors: 3 mm metal panels with inflatable seal
• Doors: mechanical press sealing; observation windows made of 12 mm tempered glass
