Containment isolator

for the pharmaceutical industrydispensingfor biomedical research

Introduction

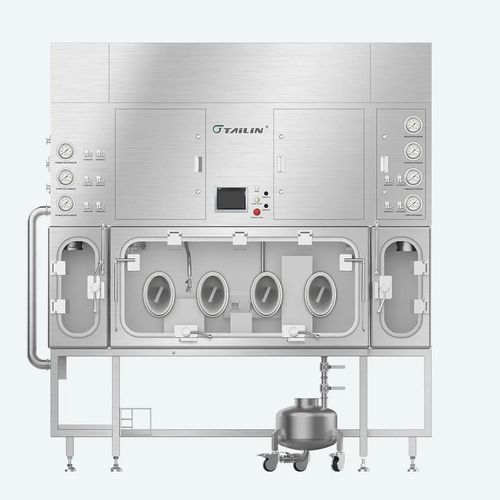

The Tailin Containment Isolator is designed to protect operators during weighing, dispensing, drying, pressing and filling of highly potent or toxic materials. It is suitable for pharmaceutical production and development, cosmetic formulation, bioproduct research and physico-chemical laboratory studies. The system uses a high‑pressure exhaust fan to create turbulent airflow and maintain a controlled negative pressure inside the work zone, preventing cross‑contamination and protecting personnel and the environment.

Features

• Compliant with OEB5 containment requirements for high‑potency APIs and potent compounds.
• Integrated moisture titrator and moisture balance for accurate titration workflows.
• H14 push‑push HEPA final filtration (indicated/optional).
• Continuous liner system for safe transfer and containment of waste and samples (indicated).
• Siemens touchscreen HMI for process control, logging and traceability (indicated).
• Interior in 316L stainless steel with smooth, cleanable surfaces to reduce particle retention.

Specifications

• Fresh air supply volume: adjustable to application; typical configurable range 100–500 m³/h.
• Negative pressure control: typically −10 to −50 Pa (configurable per process).
• Filtration: pre‑filter stage plus H14 HEPA final filter; optional activated carbon stage for odour/solvent control.
• Containment level: OEB5.
• Dimensions, throughput and utilities: modular and configurable; custom sizes and layouts available on request.
• Electrical and services: configurable to site requirements; compressed air and extraction connections required (specify at order).
