Rotary evaporator vacuum system MD 4C NT +AK SYNCHRO+EK

laboratorymulti-stage

Overview

• Designed for outstanding chemical resistance and high vapor tolerance
• High pumping performance even close to ultimate vacuum
• Good ultimate vacuum with gas ballast for solvent handling
• Simultaneous operation of two independent vacuum lines with check valves to prevent cross-interference
• Efficient solvent recovery for improved environmental performance

Product description

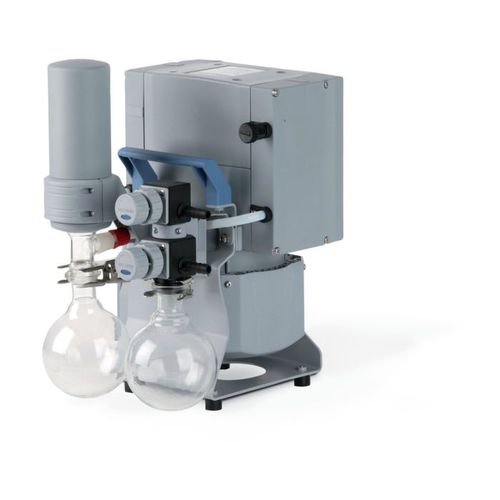

The MD 4C NT +AK SYNCHRO+EK chemistry vacuum system enables two vacuum processes to run in parallel from a single pump. Typical applications include rotary evaporators, vacuum concentrators and vacuum drying ovens for high-boiling solvents. Each vacuum port is fitted with a manual valve to control effective flow at that port. The MD 4C NT pump provides sufficient pumping speed for parallel operation of two demanding applications. The inlet separator (AK), made of glass with a protective coating, traps particles and liquid droplets. The outlet waste-vapor condenser (EK) is compact and highly efficient, enabling near-100% solvent recovery for reuse and reduced emissions. The unit is delivered ready for use with user manual.

Key product data

• Ultimate vacuum: 1.5 mbar
• Ultimate vacuum with gas ballast: 3 mbar
• Max. pumping speed 50 Hz: 3.4 m³/h

Technical data and graphs (table)
Max. pumping speed 50 Hz: 3.4 m3/h
Max. pumping speed 60 Hz: 2.2 cfm
Ultimate vacuum: 1.5 mbar / 1.1 torr
Ultimate vacuum with gas ballast: 3 mbar / 2.2 torr
Number of heads: 4
Number of stages: 3
Lower ambient temperature (operation): 10 °C
Upper ambient temperature (operation): 40 °C
Lower ambient temperature (storage): -10 °C
Upper ambient temperature (storage): 60 °C
Max. back pressure (abs.): 1.1 bar
Inlet connection: 2 x hose nozzle DN 8-10 mm
Outlet connection: Hose nozzle DN 8-10 mm
Coolant connection: 2 x hose nozzle DN 6-8 mm
Rated motor power: 0.25 kW
Rated motor speed at 50/60 Hz: 1500/1800 min-1
Protection class IEC 60529: IP 40
Dimension L x B x H: 326 x 248 x 402 mm
Weight: 17.6 kg
Noise (sound pressure level) at 50 Hz: 45 dBA
ATEX conformity: II 3/- G Ex h IIC T3 Gc X (Internal Atm. only)
NRTL certification: Yes
Rated mains voltage range 1: 230 V
Mains frequency 1: 50-60 Hz

Features / technical specifications

• Model family: MD 4C NT +AK SYNCHRO+EK
• Reference (art. no): 20736800
• SKU: VP_87
• Ultimate vacuum (no gas ballast): 1.5 mbar (1.1 torr)
• Ultimate vacuum (with gas ballast): 3 mbar (2.2 torr)
• Pumping speed (50 Hz): 3.4 m³/h; (60 Hz): 2.2 cfm
• Number of heads: 4; Number of stages: 3
• Rated motor power: 0.25 kW; Rated speed: 1500/1800 min⁻¹ (50/60 Hz)
• Connections: inlet 2× DN 8-10 mm, outlet DN 8-10 mm, coolant 2× DN 6-8 mm
• Max. back pressure (abs.): 1.1 bar
• Protection class: IP40
• Dimensions (L×B×H): 326×248×402 mm
• Weight: 17.6 kg; Noise level (50 Hz): 45 dBA
• ATEX and NRTL certifications available
• Items supplied: pumping unit completely mounted and ready for use, with manual
