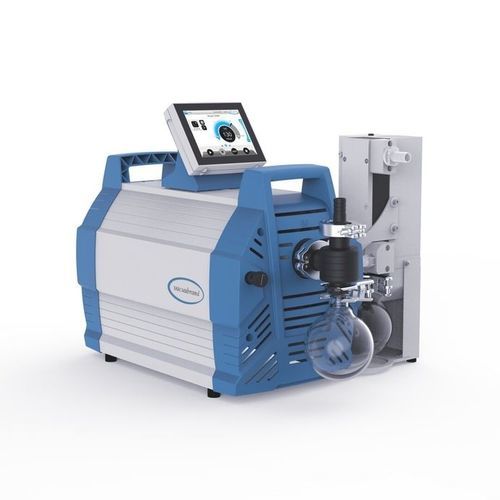

Laboratory vacuum pump PC 3012 NT VARIO select EKP

diaphragmmulti-stagehigh-performance

Overview

• VACUU·SELECT vacuum controller with graphical UI and predefined applications for simplified lab workflows
• automatic boiling point detection and vacuum adjustment for shorter process times
• suitable for high vacuum requirements with large volumes of high-boiling solvents
• long diaphragm lifetime for reduced operating and maintenance costs
• efficient solvent recovery and low energy consumption for improved environmental compatibility

Product description
The PC 3012 NT VARIO select pumping unit precisely controls vacuum levels to ensure reproducible process conditions. Combining high pumping speed with a deep ultimate vacuum, it is designed for demanding solvent evaporation, vacuum drying and distillation tasks in miniplants, kilo labs and scale-up facilities. The integrated VACUU·SELECT controller offers an application-based graphical interface with predefined processes, manual set-point control and drag-and-drop application editing. During solvent evaporation the controller continuously detects boiling points and automatically adapts the vacuum profile. The VARIO control adjusts motor speed as needed to maintain the set vacuum, reducing bumping and foaming, lowering noise and extending maintenance intervals. The glass inlet separator with protective coating prevents particles and droplets from entering the pump. An exhaust vapor (emission) condenser enables near-complete solvent recovery when used with chilled water or a recirculating chiller.

Technical data
Max. pumping speed 50 Hz: 14.3 m3/h
Max. pumping speed 60 Hz: 8.4 cfm
Ultimate vacuum: 1.5 mbar / 1.1 torr
Ultimate vacuum with gas ballast: 3 mbar / 2.2 torr
Number of heads: 8
Number of stages: 3
Vacuum controller: VACUU·SELECT
Ambient temperature (operation): 10 °C to 40 °C
Ambient temperature (storage): -10 °C to 60 °C
Max. back pressure (abs.): 1.1 bar
Inlet connection: Small flange KF DN 25 / hose nozzle DN 15 mm
Outlet connection: Hose nozzle DN 15 mm
Rated motor power: 0.53 kW
Protection class IEC 60529: IP 40
Dimensions (L x W x H): 616 x 435 x 450 mm
Weight: 33.6 kg
Noise (50 Hz): 47 dBA
ATEX conformity: II 3/- G Ex h IIC T3 Gc X (internal atmosphere only)
Supply scope: Pumping unit with Peltronic emission condenser and operating manual (power cable not included)
Rated mains voltage/frequency: 200-230 V / 50-60 Hz

Features / technical specifications

• Model: PC 3012 NT VARIO select EKP (Articleno. 25743874)
• Brand: VACUUBRAND
• Ultimate vacuum: 1.5 mbar (1.1 torr)
• Ultimate vacuum with gas ballast: 3 mbar (2.2 torr)
• Pumping speed (50 Hz): 14.3 m3/h
• Number of heads / stages: 8 heads / 3 stages
• Controller: VACUU·SELECT (graphical UI, automatic boiling point detection, predefined applications)
• Inlet / outlet: KF DN25 / hose nozzle DN15 mm
• Rated motor power: 0.53 kW
• Dimensions (L x W x H): 616 x 435 x 450 mm
• Weight: 33.6 kg
• Noise level (50 Hz): 47 dBA
• Protection class: IP 40
• ATEX: II 3/- G Ex h IIC T3 Gc X (internal atmosphere only)
• Supply scope: Pumping unit with Peltronic emission condenser and manual (power cable not included)
