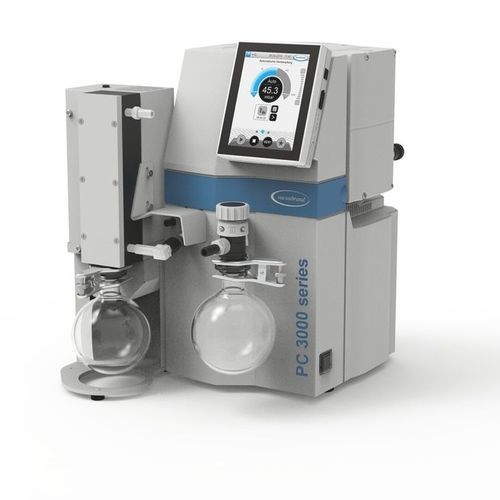

Laboratory vacuum pump PC 3004 VARIO select EKP

diaphragmoil-free

Overview

• VACUU·SELECT vacuum controller with graphical user interface and predefined applications simplifies laboratory workflows
• Automatic boiling point detection and automatic vacuum adjustment shorten process times during solvent evaporation
• Oil-free chemistry diaphragm pumping technology with high ultimate vacuum and high pumping speed for most high‑boiling solvents
• Long diaphragm service life reduces operating and maintenance costs
• Low energy consumption and integrated Peltronic emissions condenser enable efficient solvent recovery

Description

• The PC 3004 VARIO select EKP pumping unit precisely regulates vacuum via the VARIO speed control to deliver stable process control for evaporation and distillation tasks.
• The integrated VACUU·SELECT controller offers a graphical, application‑based interface with predefined processes, drag‑and‑drop editing and continuous boiling point detection to automatically adjust vacuum during solvent evaporation.
• The VARIO control algorithm maintains the set vacuum without unnecessarily increasing motor speed, preventing bumping and foaming while reducing noise and extending maintenance intervals.
• An inlet glass separator with protective coating retains particles and liquid droplets to protect the pump and extend service life.
• The Peltronic emissions condenser achieves high solvent recovery without the need for an external coolant or dry ice supply.

Product details

• Ultimate vacuum: 1.5 mbar
• Ultimate vacuum with gas ballast: 3 mbar
• Max. pumping speed (50 Hz): 4.6 m³/h
• Max. pumping speed (60 Hz): 2.7 cfm

Technical data and graphs (table)
Max. pumping speed 50 Hz: 4.6 m3/h
Max. pumping speed 60 Hz: 2.7 cfm
Ultimate vacuum: 1.5 mbar / 1.1 torr
Ultimate vacuum with gas ballast: 3 mbar / 2.2 torr
Number of heads: 4
Number of stages: 3
Vacuum controller: VACUU·SELECT
Lower ambient temperature (operation): 10 °C
Upper ambient temperature (operation): 40 °C
Lower ambient temperature (storage): -10 °C
Upper ambient temperature (storage): 60 °C
Max. back pressure (abs.): 1.1 bar
Inlet connection: Hose nozzle DN 8-10 mm
Outlet connection: Hose nozzle DN 8-10 mm
Rated motor power: 0.53 kW
Protection class IEC 60529: IP 20
Dimension L: 405 mm
Dimension B: 361 mm
Dimension H: 457 mm
Weight: 25.2 kg
Noise (sound pressure level) at 50 Hz: 43 dBA
ATEX conformity: II 3/- G Ex h IIC T3 Gc X (Internal Atm. only)
NRTL certification: No
Items supplied: Pumping unit with included Peltronic emission condenser, operating manual, without power cable
Rated mains voltage range: 200-230 V
Mains frequency: 50-60 Hz
Interface: Ethernet (RJ45): Modbus TCP / USB (Type A): Data transfer, software update, RS-232 (additional adapter required)

Characteristics / technical specifications

• Model: PC 3004 VARIO select EKP
• Controller: VACUU·SELECT (graphical UI, predefined applications, boiling point detection, VARIO control algorithm)
• Pumping technology: Oil‑free chemistry diaphragm pump
• Pumping speed (50 Hz): 4.6 m³/h
• Ultimate vacuum: 1.5 mbar (1.1 torr)
• Gas ballast ultimate vacuum: 3 mbar (2.2 torr)
• Heads / stages: 4 heads, 3 stages
• Connections: Hose nozzle DN 8–10 mm (inlet and outlet)
• Rated motor power: 0.53 kW
• Protection class: IP 20
• Dimensions (L × B × H): 405 × 361 × 457 mm
• Weight: 25.2 kg
• Noise level: 43 dBA (50 Hz)
• ATEX: II 3/- G Ex h IIC T3 Gc X (internal atmosphere only)
• Interfaces: Ethernet (RJ45) Modbus TCP, USB (Type A) for data transfer/software update, RS-232 via adapter
• Included accessories: Peltronic emission condenser, operating manual (power cable not included)
