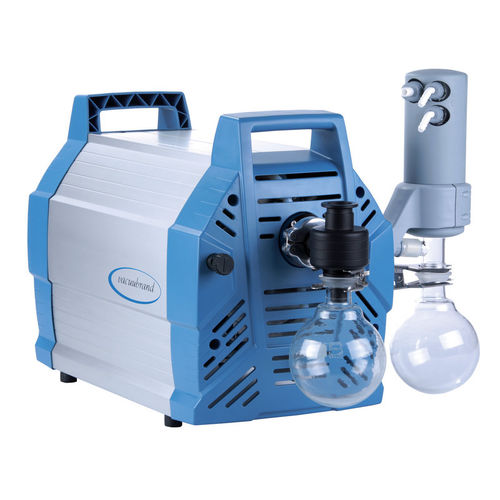

Laboratory vacuum system MD 12C NT

high flow capacity

Overview

• Outstanding chemical resistance and high vapor tolerance
• High pumping speed even near ultimate vacuum reduces process time
• Very low vibration and low noise (50 dBA at 50 Hz)
• Good ultimate vacuum even with gas ballast open for condensate purge
• Inlet separator (AK) and exhaust condenser (EK) enable efficient solvent recovery and protection under rough conditions

Short description
The MD 12C NT +AK+EK chemistry vacuum system is designed for evacuation, evaporation and pumping of gases and vapors in chemical and pharmaceutical environments. The compact MD 12C NT pump delivers particularly high pumping speed and achieves a very good ultimate vacuum even with the gas ballast open, making it suitable for applications with high-boiling solvents. Materials and construction are selected for chemical compatibility to allow broad use in laboratory and production settings. The AK inlet separator protects the pump from particles and liquid droplets; the EK exhaust condenser provides compact, near‑100% solvent recovery for recycling and environmental protection.

Key product details

• Ultimate vacuum: 2 mbar (1.5 torr)
• Ultimate vacuum with gas ballast: 4 mbar (3 torr)
• Max. pumping speed (50 Hz): 12 m3/h

Technical data and graphs (selected)
Max. pumping speed 50 Hz: 12 m3/h
Max. pumping speed 60 Hz: 7.0 cfm
Ultimate vacuum: 2 mbar / 1.5 torr
Ultimate vacuum with gas ballast: 4 mbar / 3 torr
Number of heads: 8
Number of stages: 3
Ambient temperature (operation): 10 °C to 40 °C
Ambient temperature (storage): -10 °C to 60 °C
Max. back pressure (abs.): 1.1 bar
Inlet connection: Small flange KF DN 25 / hose nozzle DN 15 mm
Outlet connection: Hose nozzle DN 8-10 mm
Coolant connection: 2 × hose nozzle DN 6-8 mm
Rated motor power: 0.53 kW
Rated motor speed (50/60 Hz): 1650 min-1
Protection class IEC 60529: IP 40
Dimensions (L × W × H): 616 × 387 × 395 mm
Weight: 28.9 kg
Noise (sound pressure level) at 50 Hz: 50 dBA
ATEX conformity: II 3/- G Ex h IIC T3 Gc X (Internal Atmosphere only)
NRTL certification: No
Items supplied: Pumping unit completely mounted, ready for use, with manual
Rated mains voltage range: 200–230 V
Mains frequency: 50–60 Hz

Features / technical specifications

• Model: MD 12C NT (configured with AK inlet separator and EK exhaust condenser)
• Pumping speed (50 Hz): 12 m3/h; (60 Hz): 7.0 cfm
• Ultimate vacuum: 2 mbar; with gas ballast: 4 mbar
• Number of heads: 8; Number of stages: 3
• Rated motor power: 0.53 kW; Rated speed: 1650 min-1
• Connections: Inlet KF DN25 or hose nozzle DN15 mm; outlet DN8-10 mm; coolant 2 × DN6-8 mm
• Max. back pressure (abs.): 1.1 bar
• Operating temperature: 10 °C to 40 °C; Storage: -10 °C to 60 °C
• Dimensions (L × W × H): 616 × 387 × 395 mm; Weight: 28.9 kg
• Noise level (50 Hz): 50 dBA
• ATEX: II 3/- G Ex h IIC T3 Gc X (internal atmosphere only)
• Scope of supply: Complete pumping unit, ready for operation, with manual
