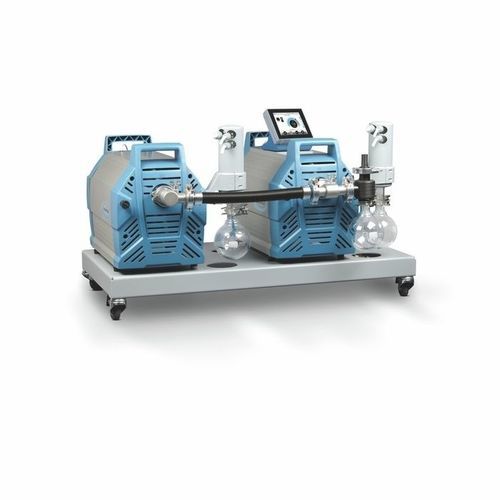

Laboratory vacuum pump PC 3012 NT VARIO select DUO

diaphragmoil-freedry

Overview

• VACUU·SELECT vacuum controller with graphical user interface and predefined vacuum processes; easy integration via digital or analogue interfaces
• Automatic boiling point detection and vacuum adjustment for short process times
• Designed to meet vacuum requirements for very large quantities of most high-boiling solvents
• Long diaphragm lifetime for reduced operational and service costs
• Environmentally compatible: low energy consumption, oil- and water-free operation, efficient solvent recovery

Product description
The VARIO® DUO pumping units combine two VARIO® pumps connected in parallel on the inlet side and are driven synchronously by a single VACUU·SELECT vacuum controller. The controller synchronises pump speeds and controls vacuum accurately to match process requirements. It provides predefined vacuum programs, automatic boiling point detection and allows fully automatic or reproducible program sequences without user pre-settings. Integration into existing control systems is possible via digital and analogue interfaces. The oil‑ and water‑free diaphragm design and chemically resistant materials make the unit suitable for universal use in chemistry and pharmaceuticals.

Key product values
Ultimate vacuum: 1.5 mbar
Ultimate vacuum with gas ballast: 3 mbar
Max. pumping speed (50 Hz): 28 m3/h
Number of heads: 16
Number of stages: 3

Technical data and graphs
Max. pumping speed 50 Hz : 28 m3/h
Max. pumping speed 60 Hz : 16.5 cfm
Ultimate vacuum : 1.5 mbar / 1.1 torr
Ultimate vacuum with gas ballast : 3 mbar / 2.2 torr
Number of heads : 16
Number of stages : 3
Vacuum controller : VACUU·SELECT
Ambient temperature (operation) : 10 °C to 40 °C
Ambient temperature (storage) : -10 °C to 60 °C
Max. back pressure (abs.) : 1.1 bar
Inlet connection : Small flange KF DN 25 / hose nozzle DN 15 mm
Outlet connection : 2 x hose nozzle DN 10 mm
Coolant connection : 4 x hose nozzle DN 6-8 mm
Rated motor power : 1.06 kW
Protection class IEC 60529 : IP 40
Dimensions (L x W x H) : 612 x 925 x 585 mm
Weight : 65 kg
Noise (50 Hz) : 53 dBA
ATEX conformity : II 3/- G Ex h IIC T3 Gc X (internal atmosphere only)
Power supply : 200-230 V, 50-60 Hz

Characteristics / technical specifications

• Model: PC 3012 NT VARIO select DUO
• Brand: VACUUBRAND
• Series: VARIO® DUO (two VARIO pumps in parallel, VACUU·SELECT control)
• Pumping speed (50 Hz): 28 m³/h
• Ultimate vacuum: 1.5 mbar (1.1 torr)
• Ultimate vacuum with gas ballast: 3 mbar (2.2 torr)
• Heads / stages: 16 heads, 3 stages
• Rated motor power: 1.06 kW
• Connections: Inlet KF DN 25 / hose nozzle DN 15 mm; Outlet 2 x DN 10 mm; Coolant 4 x DN 6-8 mm
• Operating temp.: 10 °C to 40 °C
• Storage temp.: -10 °C to 60 °C
• Max. back pressure (abs.): 1.1 bar
• Protection class: IP 40
• Dimensions (L x W x H): 612 x 925 x 585 mm
• Weight: 65 kg
• Noise (50 Hz): 53 dBA
• ATEX: II 3/- G Ex h IIC T3 Gc X (internal atmosphere only)
• Items supplied: Pumping unit completely mounted, ready for use, with manual
