Diaphragm vacuum pump MD 1C
multi-stageoil-free

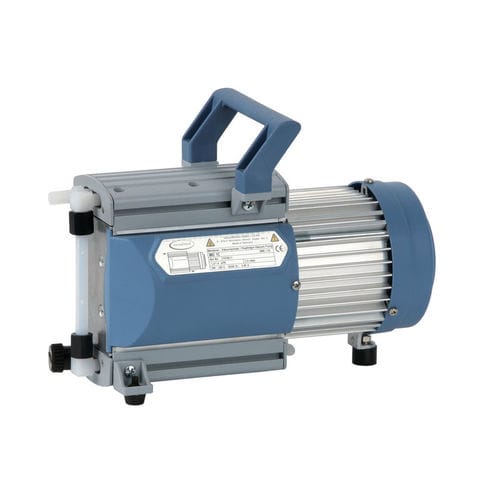

Diaphragm vacuum pump - MD 1C - Vacuubrand - multi-stage / oil-free
Diaphragm vacuum pump - MD 1C - Vacuubrand - multi-stage / oil-free
Add to favorites
Compare this product
Go to the Vacuubrand website for more information

Characteristics

Technology
diaphragm
Options
multi-stage, oil-free
Flow

21.67 l/min, 24.93 l/min
(5.72 us gal/min, 6.59 us gal/min)

Power

0.08 kW
(0.11 hp)

Pressure

0.002 bar, 0.004 bar, 1.1 bar
(0.029 psi, 0.058 psi, 15.9542 psi)

Inlet fitting size

Max.: 10 mm
(0.4 in)

Min.: 8 mm
(0.3 in)

Outlet fitting size

8 mm
(0.3 in)

Weight

7.9 kg
(17.4 lb)

Length

33.8 cm
(13.3 in)

Width

14.2 cm
(5.6 in)

Height

22.3 cm
(8.8 in)

Description

Overview
  • Outstanding chemical resistance and high vapour tolerance
  • High pumping speed close to ultimate vacuum
  • Excellent ultimate vacuum, also with gas ballast
  • Low noise and very low vibration
  • Proven long diaphragm life; maintenance-free drive


Description
Three-stage chemical-design diaphragm pump for continuous oil-free evacuation of corrosive gases and vapours. The three-stage layout combines high pumping speed with a deep ultimate vacuum in a compact footprint. All wetted parts are manufactured from chemically resistant fluoroplastics. PTFE sandwich diaphragms increase reliability and extend service life. The MD 1C with gas ballast valve is optimised for pumping easily condensable vapours (high-boiling solvents).

Technical data and graphs
Max. pumping speed 50 Hz: 1.3 m³/h
Max. pumping speed 60 Hz: 0.88 cfm
Ultimate vacuum (no gas ballast): 2 mbar / 1.5 torr
Ultimate vacuum (with gas ballast): 4 mbar / 3 torr
Number of heads: 4
Number of stages: 3
Operating ambient temperature: 10 °C to 40 °C
Storage temperature: -10 °C to 60 °C
Max. back pressure (abs.): 1.1 bar
Inlet connection: Hose nozzle DN 8–10 mm
Outlet connection: Hose nozzle DN 8 mm
Rated motor power: 0.08 kW
Rated speed (50/60 Hz): 1500 / 1800 min⁻¹
Protection class (IEC 60529): IP 40
Dimensions (L × W × H): 338 × 142 × 223 mm
Weight: 7.9 kg
Noise level (50 Hz): 41 dBA
ATEX conformity: II 3/- G Ex h IIC T3 Gc X (Internal atmosphere only)
NRTL certification: Yes
Items supplied: Pump completely mounted, ready for use, with manual.

Characteristics / technical specifications
  • Model: MD 1C
  • Type: Three-stage chemical diaphragm pump, oil-free
  • Diaphragms: PTFE sandwich
  • Max. pumping speed (50 Hz): 1.3 m³/h
  • Max. pumping speed (60 Hz): 0.88 cfm
  • Ultimate vacuum (no gas ballast): 2 mbar (1.5 torr)
  • Ultimate vacuum (with gas ballast): 4 mbar (3 torr)
  • Number of heads: 4
  • Number of stages: 3
  • Rated motor power: 0.08 kW
  • Rated speed: 1500 / 1800 min⁻¹ (50/60 Hz)
  • Connections: Inlet DN 8–10 mm hose nozzle; Outlet DN 8 mm hose nozzle
  • Max. back pressure (abs.): 1.1 bar
  • Protection class: IP 40
  • Dimensions (L × W × H): 338 × 142 × 223 mm
  • Weight: 7.9 kg
  • Noise level (50 Hz): 41 dBA
  • Operating ambient temperature: 10 °C to 40 °C
  • Storage temperature: -10 °C to 60 °C
  • ATEX: II 3/- G Ex h IIC T3 Gc X (internal atmosphere only)
  • Items supplied: Pump completely mounted, ready for use, with manual
