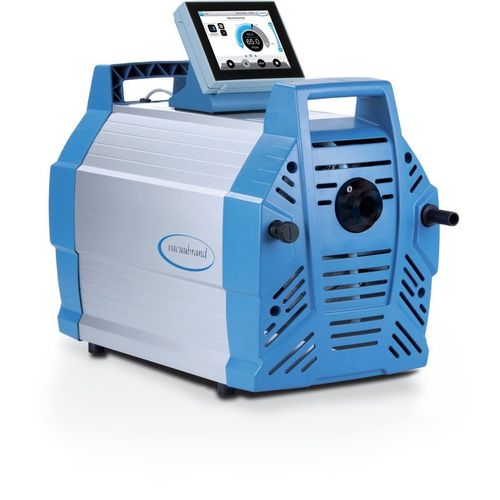

Laboratory vacuum pump MD 12C NT VARIO® select

diaphragm

Overview

• VACUU·SELECT vacuum controller with graphical user interface and predefined applications simplifies laboratory workflows
• automatic boiling point detection and adaptive vacuum control for shorter process times
• suitable for handling large quantities of most high-boiling solvents
• long diaphragm life reduces operating and maintenance costs

Product description
The MD 12C NT VARIO select is a chemically resistant diaphragm vacuum pump designed for laboratory applications that require high pumping speed and reliable operation with aggressive or corrosive media. The pump uses fluoropolymer wetted materials and perfluoroelastomer diaphragms. Integrated VACUU·SELECT control provides application-based operation: manual set-point control, fully automated distillations, or custom processes via drag-and-drop. For solvent evaporation the controller continuously detects boiling and automatically adjusts the vacuum. VARIO speed control adapts pump speed to the actual gas load to extend maintenance intervals and reduce noise.

Key product details

• Ultimate vacuum: 1.5 mbar
• Ultimate vacuum with gas ballast: 3 mbar
• Max. pumping speed (50 Hz): 14.3 m3/h

Technical specifications

• Max. pumping speed 50 Hz: 14.3 m3/h
• Max. pumping speed 60 Hz: 8.4 cfm
• Ultimate vacuum: 1.5 mbar / 1.1 torr
• Ultimate vacuum with gas ballast: 3 mbar / 2.2 torr
• Number of heads: 8
• Number of stages: 3
• Vacuum controller: VACUU·SELECT
• Operating ambient temperature (lower): 10 °C
• Operating ambient temperature (upper): 40 °C
• Storage temperature (lower): -10 °C
• Storage temperature (upper): 60 °C
• Max. back pressure (abs.): 1.1 bar
• Inlet connection: small flange KF DN 25
• Outlet connection: Hose nozzle DN 15 mm
• Rated motor power: 0.53 kW
• Protection class IEC 60529: IP 40
• Dimensions (L×W×H): 533 × 260 × 450 mm
• Weight: 28.9 kg
• Noise (sound pressure level) at 50 Hz: 47 dBA
• ATEX conformity: II 3/- G Ex h IIC T3 Gc X (Internal Atmosphere only)
• NRTL certification: No
• Items supplied: Pump completely mounted, ready for use, with manual
• Rated mains voltage range: 200-230 V
• Mains frequency: 50-60 Hz
• Interface: Ethernet (RJ45): Modbus TCP / USB (Type A): Data transfer, software update / RS-232 (additional adapter required)
