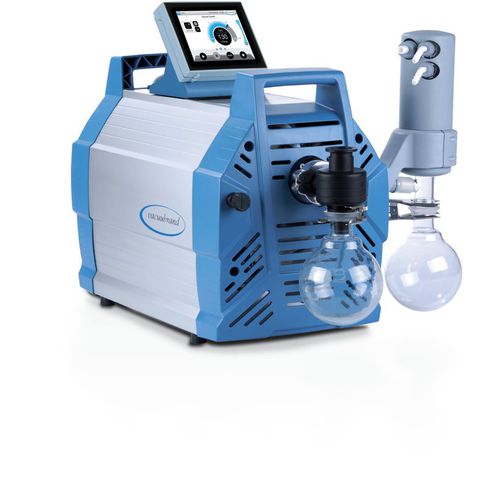

Rotary evaporator vacuum pump PC 3012 NT VARIO® select

laboratorydiaphragmoil-free

Overview

• VACUU·SELECT vacuum controller with graphical user interface and predefined applications simplifies laboratory workflows
• Automatic boiling point detection and automatic vacuum adjustment for short process times
• Meets high vacuum requirements for large quantities of most high‑boiling solvents
• Extraordinary diaphragm life for reduced operational and servicing costs
• Excellent environmental compatibility through low energy consumption and efficient solvent recovery

Product description
The PC 3012 NT VARIO select pumping unit precisely controls the vacuum level to enable advanced process control. With high pumping speed and deep ultimate vacuum, it is suitable for demanding applications such as floor‑standing rotary evaporators, vacuum drying ovens, distillation columns, miniplants, kilo labs and scale‑up facilities. The integrated VACUU·SELECT controller provides an application‑based, intuitive interface with manual set‑point, fully automated distillation sequences and custom applications using drag‑and‑drop editing. During solvent evaporation VACUU·SELECT continuously detects the boiling point and adapts the vacuum profile automatically.

The VARIO control adjusts motor speed to maintain the desired vacuum only as fast as necessary, preventing bumping and foaming, reducing noise and extending maintenance intervals. A glass inlet separator with protective coating prevents particles and liquid droplets from entering the pump. The exhaust vapor condenser enables nearly complete solvent recovery when used with a chilled water line or recirculating chiller.

Product details (key performance values)

• Ultimate vacuum: 1.5 mbar
• Ultimate vacuum with gas ballast: 3 mbar
• Max. pumping speed 50 Hz: 14.3 m³/h

Technical data and graphs (summary)
Max. pumping speed 50 Hz: 14.3 m³/h
Max. pumping speed 60 Hz: 8.4 cfm
Ultimate vacuum: 1.5 mbar / 1.1 torr
Ultimate vacuum with gas ballast: 3 mbar / 2.2 torr
Number of heads: 8
Number of stages: 3
Vacuum controller: VACUU·SELECT
Lower ambient temperature (operation): 10 °C
Upper ambient temperature (operation): 40 °C
Lower ambient temperature (storage): -10 °C
Upper ambient temperature (storage): 60 °C
Max. back pressure (abs.): 1.1 bar
Inlet connection: Small flange KF DN 25 / hose nozzle DN 15 mm
Outlet connection: Hose nozzle DN 8-10 mm
Coolant connection: 2 x hose nozzle DN 6-8 mm
Rated motor power: 0.53 kW
Protection class IEC 60529: IP 40
Dimension L x W x H: 616 × 387 × 450 mm
Weight: 29.7 kg
Noise (sound pressure level) at 50 Hz: 47 dBA
ATEX conformity: II 3/- G Ex h IIC T3 Gc X (internal atmosphere only)
NRTL certification: No
Items supplied: Pumping unit completely mounted, ready for use, with manual
Rated mains voltage range 1: 200-230 V
Mains frequency 1: 50-60 Hz

Available documents (examples)
Product brochure, product technical data sheet and pump manual in English; additional multilingual manuals and safety information available as downloadable PDFs.

Characteristics / technical specifications

• Model type: PC 3012 NT VARIO select (chemistry diaphragm pumping unit)
• Vacuum controller: VACUU·SELECT (graphical UI, predefined applications, boiling point detection)
• Pumping principle: chemistry diaphragm pumping unit (oil‑free, chemically resistant diaphragms)
• Pumping speed (50 Hz): 14.3 m³/h
• Ultimate vacuum (no gas ballast): 1.5 mbar
• Ultimate vacuum (with gas ballast): 3 mbar
• Heads / stages: 8 heads, 3 stages
• Inlet / outlet connections: KF DN25 / hose nozzle DN15; outlet DN8‑10
• Coolant connections: 2 × DN6‑8 hose nozzles
• Rated motor power: 0.53 kW
• Protection class: IP 40
• Dimensions (L×W×H): 616 × 387 × 450 mm
• Weight: 29.7 kg
• Sound pressure level (50 Hz): 47 dBA
• Max. back pressure (abs.): 1.1 bar
• Supply condition: unit delivered completely mounted and ready for use with manual
