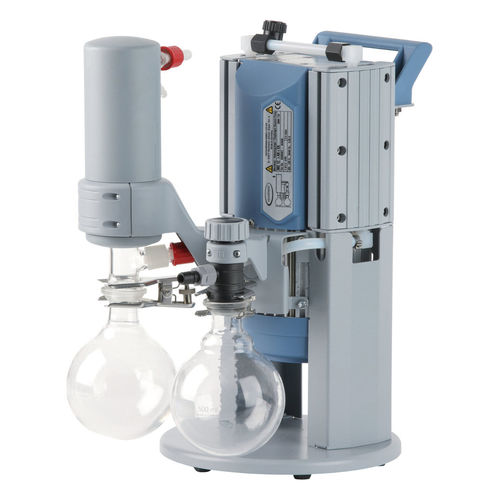

Rotary evaporator vacuum pump MD 1C

laboratorydiaphragmoil-free

Overview

• Chemical‑resistant design with high vapor tolerance
• High performance close to the ultimate vacuum
• Good ultimate vacuum with gas ballast
• Low noise and very low vibration
• Efficient solvent recovery for reduced emissions

Short description
This chemistry vacuum system is designed for evacuation, evaporation and pumping of gases and vapors in laboratory and process settings. It is suitable for applications with high‑boiling solvents and often replaces rotary vane pumps. Typical uses include rotary evaporators, vacuum drying ovens and vacuum concentrators. The inlet separator (AK) is glass with a protective coating to retain particles and liquid droplets. The outlet waste vapor condenser (EK) is compact and enables near‑100% solvent recovery to support recycling and environmental protection. The pump uses an oil‑free diaphragm design for chemical compatibility and low maintenance.

Key product details

• Ultimate vacuum: 2 mbar
• Ultimate vacuum with gas ballast: 4 mbar
• Max. pumping speed 50 Hz: 1.3 m³/h
• Noise (50 Hz): 45 dBA
• Weight: 11 kg

Technical data and graphs (table)
Max. pumping speed 50 Hz: 1.3 m³/h
Max. pumping speed 60 Hz: 0.88 cfm
Ultimate vacuum: 2 mbar / 1.5 torr
Ultimate vacuum with gas ballast: 4 mbar / 3 torr
Number of heads: 4
Number of stages: 3
Lower ambient temperature (operation): 10 °C
Upper ambient temperature (operation): 40 °C
Lower ambient temperature (storage): -10 °C
Upper ambient temperature (storage): 60 °C
Max. back pressure (abs.): 1.1 bar
Inlet connection: Hose nozzle DN 8-10 mm
Outlet connection: Hose nozzle DN 8-10 mm
Coolant connection: 2 x hose nozzle DN 6-8 mm
Rated motor power: 0.08 kW
Rated motor speed at 50/60 Hz: 1500/1800 min⁻¹
Protection class IEC 60529: IP 40
Dimensions L x W x H: 316 x 239 x 405 mm
Weight: 11 kg
Noise (sound pressure level) at 50 Hz: 45 dBA
ATEX conformity: II 3/- G Ex h IIC T3 Gc X (internal atmosphere only)
NRTL certification: Yes
Items supplied: Pumping unit completely mounted, ready for use, with manual
Rated mains voltage range 1: 220-230 V
Mains frequency 1: 50-60 Hz

Characteristics / technical specifications

• Model designation: MD 1C +AK+EK
• Application areas: evacuation, evaporation, pumping of gases and vapors (rotary evaporators, vacuum drying ovens, vacuum concentrators)
• Separator at inlet (AK): glass with protective coating to retain particles and liquid droplets
• Waste vapor condenser at outlet (EK): compact design enabling near‑100% solvent recovery
• Oil‑free diaphragm pump design for chemical resistance
• Low noise operation: 45 dBA (50 Hz)
• Compact dimensions and 11 kg weight for bench or system integration
• Electrical: 220–230 V, 50–60 Hz, rated motor power 0.08 kW
• Protection class: IP 40
• Connections: inlet/outlet hose nozzles DN 8–10 mm; coolant 2× DN 6–8 mm
• Max. permissible back pressure: 1.1 bar (abs.)
• ATEX: II 3/- G Ex h IIC T3 Gc X (internal atmosphere only)
• NRTL certified
• Supplied complete and ready for use with manual
