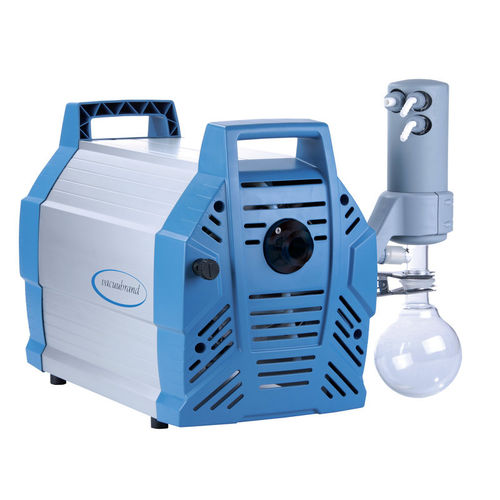

Rotary evaporator vacuum pump MD 12C NT +EK

laboratoryhigh-performancemulti-stage

Overview

• outstanding chemical resistance and superior vapor tolerance
• reduced process time due to particularly high pumping speed even near ultimate vacuum
• whisper quiet and very low vibration
• very good ultimate vacuum even with open gas ballast valve for condensate purge
• excellent environmental friendliness due to efficient solvent recovery

Description
These chemistry vacuum systems are intended for evacuation, evaporation and pumping of gases and vapors. They provide particularly high pumping speed and are suitable for applications with higher vacuum requirements such as processing high‑boiling solvents. The base pump MD 12C NT achieves a very good ultimate vacuum even with the gas ballast open and delivers high performance in a compact design. The consistent design for chemical resistance enables broad use in chemical and pharmaceutical environments. The waste vapor condenser at the outlet (EK) is compact and enables near‑100% solvent recovery for efficient recycling and environmental protection. An optional inlet separator (AK) in glass with a protective coating retains particles and liquid droplets and can be retrofitted to this system.

Technical data and graphs
Max. pumping speed 50 Hz: 12 m3/h
Max. pumping speed 60 Hz: 7.0 cfm
Ultimate vacuum: 2 mbar / 1.5 torr
Ultimate vacuum with gas ballast: 4 mbar / 3 torr
Number of heads: 8
Number of stages: 3
Lower ambient temperature (operation): 10 °C
Upper ambient temperature (operation): 40 °C
Lower ambient temperature (storage): -10 °C
Upper ambient temperature (storage): 60 °C
Max. back pressure (abs.): 1.1 bar
Inlet connection: small flange KF DN 25
Outlet connection: hose nozzle DN 8-10 mm
Coolant connection: 2 x hose nozzle DN 6-8 mm
Rated motor power: 0.53 kW
Rated motor speed at 50/60 Hz: 1650 min-1
Protection class IEC 60529: IP 40
Dimension L in mm: 528 mm
Dimension B in mm: 387 mm
Dimension H in mm: 395 mm
Weight: 28.4 kg
Noise (sound pressure level) in dBA at 50 Hz: 50 dBA
ATEX conformity: II 3/- G Ex h IIC T3 Gc X (Internal Atmosphere only)
NRTL certification: No
Items supplied: Pumping unit completely mounted, ready for use, with manual.
Rated mains voltage range: 200-230 V
Mains frequency: 50-60 Hz

Specifications / technical data

• Model: MD 12C NT +EK
• Pumping speed (50 Hz): 12 m³/h
• Ultimate vacuum: 2 mbar (1.5 torr)
• Ultimate vacuum with gas ballast: 4 mbar (3 torr)
• Number of heads: 8; stages: 3
• Rated motor power: 0.53 kW; rated speed: 1650 min-1
• Inlet: KF DN 25; outlet: hose nozzle DN 8-10 mm
• Coolant connections: 2 × DN 6-8 mm
• Max. back pressure (abs.): 1.1 bar
• Dimensions (L × B × H): 528 × 387 × 395 mm
• Weight: 28.4 kg
• Noise level (50 Hz): 50 dBA
• Protection class: IP 40
• ATEX: II 3/- G Ex h IIC T3 Gc X (internal atmosphere only)
• Supply: Pumping unit fully mounted, ready for use, with manual
• Rated mains voltage: 200-230 V; mains frequency: 50-60 Hz
