Rotary evaporator vacuum pump PC 3001 VARIO select EK Peltronic
laboratoryoil-free

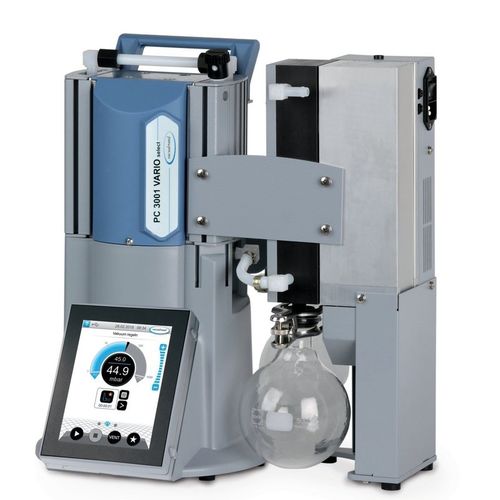

Rotary evaporator vacuum pump - PC 3001 VARIO select EK Peltronic - Vacuubrand - laboratory / oil-free
Rotary evaporator vacuum pump - PC 3001 VARIO select EK Peltronic - Vacuubrand - laboratory / oil-free
Add to favorites
Compare this product
Go to the Vacuubrand website for more information

Characteristics

Applications
for rotary evaporators, laboratory
Options
oil-free
Flow

Max.: 33.41 l/min
(8.83 us gal/min)

Min.: 33.33 l/min
(8.81 us gal/min)

Power

Max.: 0.16 kW
(0.22 hp)

Min.: 0.16 kW
(0.22 hp)

Pressure

Max.: 1.1 bar
(15.9542 psi)

Min.: 0.002 bar
(0.029 psi)

Inlet fitting size

Max.: 10 mm
(0.4 in)

Min.: 6 mm
(0.2 in)

Outlet fitting size

Max.: 10 mm
(0.4 in)

Min.: 8 mm
(0.3 in)

Weight

Max.: 11.8 kg
(26 lb)

Min.: 11.8 kg
(26 lb)

Length

Max.: 30 cm
(11.8 in)

Min.: 30 cm
(11.8 in)

Width

Max.: 37 cm
(14.6 in)

Min.: 37 cm
(14.6 in)

Height

Max.: 40 cm
(15.7 in)

Min.: 40 cm
(15.7 in)

Description

Overview
  • Peltronic emission condenser: condenses solvent vapours without external cooling media (water or dry ice)
  • VACUU·SELECT vacuum controller with graphical user interface and predefined application workflows
  • Automatic boiling point detection and continuous vacuum optimisation for short process times; very low noise and vibration
  • Compact footprint with reliable performance even during continuous condensate purge
  • Oil-free design for solvent recovery and low power consumption


Product descriptionThe PC 3001 VARIO select EK controls the vacuum precisely via pump speed regulation and is suitable for processes with high-boiling solvents.
Integrated VACUU·SELECT provides an application-based graphical interface covering manual set-point control, fully automated distillations and custom drag-and-drop workflows.
During solvent evaporation VACUU·SELECT detects solvent boiling and continuously adjusts motor speed to maintain the target process conditions.
VARIO speed control reduces noise and vibration and extends maintenance intervals. The glass inlet separator with protective coating retains particles and liquid droplets to protect the pump.
The included Peltronic emission condenser operates without cooling media such as water or dry ice. The unit is supplied oil-free and designed for efficient solvent recovery and energy savings.

Technical data
  • Model: PC 3001 VARIO select EK Peltronic
  • Brand: VACUUBRAND
  • Type: oil-free chemistry pumping unit (for solvent recovery)
  • Pumping speed (50 Hz): 2 m³/h
  • Pumping speed (60 Hz): 1.18 cfm
  • Ultimate vacuum (no gas ballast): 2.0 mbar / 1.5 torr
  • Ultimate vacuum (with gas ballast): 4 mbar / 3 torr
  • Heads / stages: 4 heads, 3 stages
  • Controller: VACUU·SELECT (graphical UI, predefined apps, boiling point detection)
  • Included emission condenser: Peltronic (no external cooling media required)
  • Inlet separator: glass with protective coating
  • Rated motor power: 0.16 kW
  • Dimensions (L x W x H): 300 x 370 x 400 mm
  • Weight: 11.8 kg
  • Noise level (50 Hz): 42 dBA
  • Protection class (IEC 60529): IP 20
  • Max. back pressure (abs.): 1.1 bar
  • Connections: inlet hose nozzle DN 6-10 mm; outlet hose nozzle DN 8-10 mm
  • Supply: rated mains voltage ranges 200-230 V and 100-120 V; mains frequency 50-60 Hz
  • Interfaces: Ethernet (RJ45) Modbus TCP; USB (Type A) data transfer/software update; RS-232 (adapter required)
  • ATEX: II 3/- G Ex h IIC T3 Gc X (internal atmosphere only)
  • Items supplied: pumping unit with Peltronic emission condenser, operating manual, without power cable
