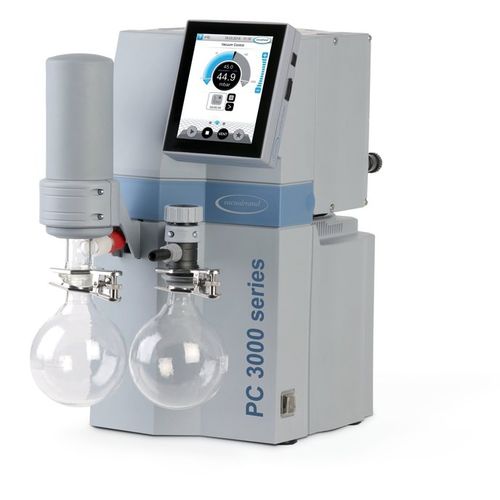

Laboratory vacuum pump PC 3004 VARIO® select

diaphragmmulti-stageoil-free

Overview

• VACUU·SELECT vacuum controller with graphical user interface and predefined applications simplifies laboratory workflows
• Automatic boiling point detection with adaptive vacuum control for shorter process times
• Oil-free chemistry diaphragm pump suitable for most high‑boiling solvents
• Long diaphragm service life leading to reduced operational and maintenance costs
• Efficient solvent recovery and low energy consumption for improved environmental compatibility

Description
The PC 3004 VARIO select pumping unit precisely controls vacuum level through stepless pump speed regulation to deliver stable process conditions. Its high pumping speed and low ultimate vacuum make it suitable for demanding applications using high‑boiling solvents. The integrated VACUU·SELECT controller offers application‑based operation: manual set‑point control for simple tasks, fully automated distillations, or custom sequences via drag‑and‑drop editing. During solvent evaporation, VACUU·SELECT continuously detects the boiling point and adapts vacuum set points to prevent bumping and foaming. The VARIO control algorithm maintains the required vacuum without running the motor faster than necessary, thereby reducing noise and extending maintenance intervals. The glass inlet separator with protective coating retains particles and droplets, protecting the pump. The exhaust vapor condenser enables near‑complete solvent recovery when used with chilled water or a recirculating chiller, supporting economical recycling and emissions reduction.

Product details (key values)
Ultimate vacuum: 1.5 mbar
Ultimate vacuum with gas ballast: 3 mbar
Max. pumping speed 50 Hz: 4.6 m3/h

Technical data and graphs
Max. pumping speed 50 Hz: 4.6 m3/h
Max. pumping speed 60 Hz: 2.7 cfm
Ultimate vacuum: 1.5 mbar / 1.1 torr
Ultimate vacuum with gas ballast: 3 mbar / 2.2 torr
Number of heads: 4
Number of stages: 3
Vacuum controller: VACUU·SELECT
Lower ambient temperature (operation): 10 °C
Upper ambient temperature (operation): 40 °C
Lower ambient temperature (storage): -10 °C
Upper ambient temperature (storage): 60 °C
Max. back pressure (abs.): 1.1 bar
Inlet connection: Hose nozzle DN 8-10 mm
Outlet connection: Hose nozzle DN 8-10 mm
Coolant connection: 2 × hose nozzle DN 6-8 mm
Rated motor power: 0.53 kW
Protection class IEC 60529: IP 20
Dimension L × W × H: 419 × 243 × 457 mm
Weight: 21.1 kg
Noise (sound pressure level) at 50 Hz: 43 dBA
ATEX conformity: II 3/- G Ex h IIC T3 Gc X (Internal Atmosphere only)
NRTL certification: No
Items supplied: Pumping unit mounted, ready for use, with manual
Rated mains voltage range: 200–230 V
Mains frequency: 50–60 Hz
Interface: Ethernet (RJ45) Modbus TCP / USB (Type A) data transfer & software update / RS-232 (adapter required)

Characteristics / technical specifications

• Model: PC 3004 VARIO select
• Controller: VACUU·SELECT (graphical UI, predefined applications, drag‑and‑drop)
• Pumping technology: oil‑free chemistry diaphragm pump (4 heads, 3 stages)
• Pumping speed (50 Hz): 4.6 m³/h; (60 Hz): 2.7 cfm
• Ultimate vacuum: 1.5 mbar (1.1 torr); with gas ballast: 3 mbar (2.2 torr)
• Rated motor power: 0.53 kW
• Cooling connections: 2 × DN 6–8 mm hose nozzles
• Inlet / outlet: Hose nozzle DN 8–10 mm
• Max. permissible back pressure: 1.1 bar (abs.)
• Operating ambient temperature: 10 °C to 40 °C; Storage: -10 °C to 60 °C
• Protection class: IP20 (IEC 60529)
• Dimensions (L × W × H): 419 × 243 × 457 mm; Weight: 21.1 kg
• Noise level: 43 dBA (50 Hz)
• ATEX rating (internal atmosphere only)
• Interfaces: Ethernet (Modbus TCP), USB Type A, RS‑232 via adapter
• Supply scope: Pumping unit completely mounted, ready for use, with manual
