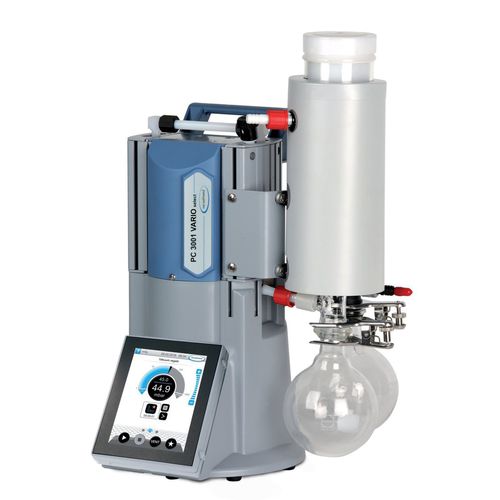

Laboratory vacuum pump PC 3001 VARIO® select TE

for rotary evaporatorsdiaphragmoil-free

Overview

• Dry ice condenser at the pump exhaust — no cooling water connection required
• VACUU·SELECT vacuum controller with graphic UI and predefined applications for common lab workflows
• Automatic boiling point detection and continuous vacuum optimisation for fast, controlled solvent evaporation
• Compact, low-noise VARIO motor speed control for extended maintenance intervals
• Oil-free chemically resistant diaphragm pump technology with glass inlet separator

Product description
The PC 3001 VARIO select TE is a chemistry diaphragm pumping unit that precisely controls vacuum via VARIO motor speed regulation. It is designed for applications with high-boiling solvents and integrates the VACUU·SELECT controller to run manual set-points, fully automated distillations or custom workflows via drag-and-drop. During solvent evaporation the controller detects boiling and automatically adjusts speed to maintain the target vacuum. The inlet separator is glass with a protective coating to retain particles and droplets. The TE configuration includes a dry ice condenser at the exhaust, removing the need for a cooling water connection.

Key features

• VACUU·SELECT vacuum controller (graphic UI, predefined and user-defined workflows)
• Automatic boiling point detection and VARIO motor speed regulation for process control
• Glass inlet separator with protective coating
• Dry ice condenser at exhaust (no cooling water required)
• Oil-free, chemically resistant diaphragm pump principle

Technical data and graphs
Max. pumping speed 50 Hz: 2 m3/h
Max. pumping speed 60 Hz: 1.18 cfm
Ultimate vacuum: 2.0 mbar / 1.5 torr
Ultimate vacuum with gas ballast: 4 mbar / 3 torr
Number of heads: 4
Number of stages: 3
Vacuum controller: VACUU·SELECT
Operating ambient temperature: 10 °C to 40 °C
Storage temperature: -10 °C to 60 °C
Max. back pressure (abs.): 1.1 bar
Inlet connection: Hose nozzle DN 6-10 mm
Outlet connection: Hose nozzle DN 8-10 mm
Coolant connection: 2 x hose nozzle DN 6-8 mm
Rated motor power: 0.16 kW
Protection class: IP 20
Dimensions (L x W x H): 301 x 341 x 493 mm
Weight: 8.7 kg
Noise level (50 Hz): 42 dBA
ATEX: II 3/- G Ex h IIC T3 Gc X (internal atmosphere only)
NRTL certified: Yes
Power supply ranges: 200-230 V / 100-120 V, 50-60 Hz
Interfaces: Ethernet (RJ45) Modbus TCP / USB Type A / RS-232 (adapter required)

Technical specifications

• Model: PC 3001 VARIO select TE
• Brand: VACUUBRAND
• Pumping principle: Oil-free chemistry diaphragm pump (VARIO)
• Ultimate vacuum (no gas ballast): 2.0 mbar (1.5 torr)
• Ultimate vacuum (with gas ballast): 4 mbar (3 torr)
• Pumping speed (50 Hz): 2 m3/h
• Heads / stages: 4 heads / 3 stages
• Controller: VACUU·SELECT (graphic UI, automated distillation, boiling detection)
• Exhaust condenser: Dry ice condenser (no cooling water required)
• Connections: Inlet DN 6-10 mm; Outlet DN 8-10 mm; Coolant 2 x DN 6-8 mm
• Rated motor power: 0.16 kW
• Protection class: IP 20
• Max. back pressure: 1.1 bar (abs.)
• Operating ambient temperature: 10 °C to 40 °C
• Storage temperature: -10 °C to 60 °C
• Dimensions (L x W x H): 301 x 341 x 493 mm
• Weight: 8.7 kg
• Noise level (50 Hz): 42 dBA
• Certifications: ATEX II 3/- G Ex h IIC T3 Gc X; NRTL
• Interfaces: Ethernet (RJ45) Modbus TCP; USB Type A; RS-232 (adapter required)
• Items supplied: Pumping unit completely mounted, ready for use, with manual
