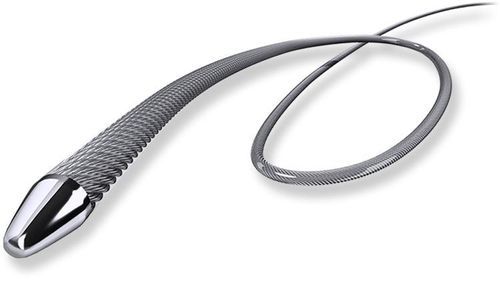

Catheter guidewire Gaia Next

coronaryhydrophilic

Precautions when removing the guide wire
Excerpt from Instructions for Use
d) Release the guide wire from the tail clip and slide the guide wire slowly, push distal end of the guide wire through the holder tube (B). (Figure 1)
f) Gently grasp the guide wire which came out from the distal end of the holder tube, at the point as close to the holder tube as possible and pull the guide wire out slowly and carefully.

Precautions for stent placement
Excerpt from Instructions for Use
Do not perform stent placement using more than one guide wire or wire operation through stent strut. Otherwise, the stent may be damaged or the guide wire may break or break apart.

Technology

• ACT ONE: This is a multi-wire coil using core technologies for wire drawing, wire forming, and torque. ACT ONE optimizes the balance of torque force, torque response, durability, and rigidity in guidewires and microcatheters for high performance.
• XTRAND Coil: A hollow coil formed by using more than one rope each made up of multiple strands. Compared with a single coil, longitudinal extension is small and tensile strength is high. Developed to avoid fracture and intravascular persistence if the tip is caught in endovascular tissue. Characterized by high transverse flexibility, high torque response, and high torque force.

Product Spec
Tip Shape: Pre-shape
Radiopaque Length: 15cm
Coating: Hydrophilic
Usable Length: 190cm / 300cm
Structure: (illustrated structure image shown on the page)
Category: #Guidewire; #Complex & Chronic occlusion

Order Information (selection of available models)
ASAHI Gaia Next 1 — Catalog No.: AH14R019P — Tip Shape: Pre-shape — Usable Length: 190cm — Outer Diameter: 0.27/0.36mm (0.011/0.014") — Coil Length: 15cm — Radiopaque Length: 15cm — Coating: Hydrophilic — Coating Length: 400mm
ASAHI Gaia Next 2 — Catalog No.: AH14R020P — Tip Shape: Pre-shape — Usable Length: 190cm — Outer Diameter: 0.30/0.36mm (0.012/0.014") — Coil Length: 15cm — Radiopaque Length: 15cm — Coating: Hydrophilic — Coating Length: 400mm
ASAHI Gaia Next 3 — Catalog No.: AH14R021P — Tip Shape: Pre-shape — Usable Length: 190cm — Outer Diameter: 0.30/0.36mm (0.012/0.014") — Coil Length: 15cm — Radiopaque Length: 15cm — Coating: Hydrophilic — Coating Length: 400mm
ASAHI Gaia Next 1 — Catalog No.: AH14R319P — Tip Shape: Pre-shape — Usable Length: 300cm — Outer Diameter: 0.27/0.36mm (0.011/0.014") — Coil Length: 15cm — Radiopaque Length: 15cm — Coating: Hydrophilic — Coating Length: 400mm
ASAHI Gaia Next 2 — Catalog No.: AH14R320P — Tip Shape: Pre-shape — Usable Length: 300cm — Outer Diameter: 0.30/0.36mm (0.012/0.014") — Coil Length: 15cm — Radiopaque Length: 15cm — Coating: Hydrophilic — Coating Length: 400mm
ASAHI Gaia Next 3 — Catalog No.: AH14R321P — Tip Shape: Pre-shape — Usable Length: 300cm — Outer Diameter: 0.30/0.36mm (0.012/0.014") — Coil Length: 15cm — Radiopaque Length: 15cm — Coating: Hydrophilic — Coating Length: 400mm

Technical specifications

• Product name: ASAHI Gaia Next
• Tip Shape: Pre-shape
• Radiopaque length: 15 cm
• Coating: Hydrophilic
• Usable lengths: 190 cm and 300 cm (depending on model)
• Available outer diameters: 0.27/0.36 mm (0.011/0.014") and 0.30/0.36 mm (0.012/0.014")
• Coil length: 15 cm
• Coating length: 400 mm
• Structure: multi-coil / structured core (illustrated)
• Intended category: Guidewire — Complex & Chronic occlusion applications
• Available catalog numbers (examples): AH14R019P, AH14R020P, AH14R021P, AH14R319P, AH14R320P, AH14R321P
